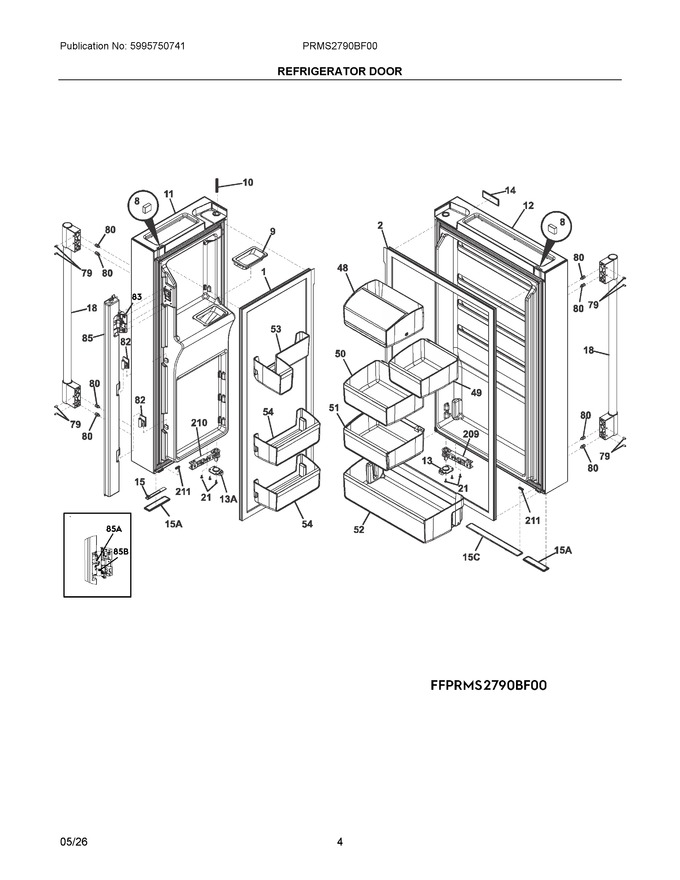

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529569		Gasket, Door, Lh Fresh Food				$ 210.81
2	5304529576		Gasket, Door, Rh Fresh Food				$ 212.38
8	140026775019		Sensor, Magnet, Switch, Reed				$ 4.57
9	5304526838		Frame, Ice Chute		Appelez-nous	-
10	5304519067		Spring, Tube Protection			Immediately	$ 11.80
11	140281015408		Door Assembly Complete, Refrigerator Lh, Stainless		Appelez-nous	-
12	140281015416		Door Assembly Complete, Refrigerator Rh, Stainless				$ 385.13
13	5304519070		Stop, Assembly, Rh Door				$ 16.01
14	809108704		Badge, Frigidaire Pro			Immediately	$ 49.10
15	140155609047		Led Pcb, Light Board, 3 Led Cluster, 6500k				$ 19.37
18	5304533253		Handle, Set Of Two, Refrigerator, Stainless Steel				$ 273.74
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
48	5304523022		Bin Assembly, Flex, Door, Dairy				$ 97.46
49	5304523023		Bin, Flex, 1/3 Width, Door				$ 87.77
50	5304523024		Bin, Flex, 2/3 Width, Door				$ 96.69
51	5304538425		Bin Assembly, Flex, Door, Slide Adjust				$ 89.17
52	5304523026		Bin, Fixed, Door Bottom				$ 131.27
53	5304523027		Bin, Fixed, Small, Door, Ice Chute		Appelez-nous	-
54	5304523028		Bin, Fixed, Lh Door			Immediately	$ 86.49
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
80	5304519063		Screw, Handle Mounting			Immediately	$ 12.75
82	5304519080		Hinge, Flip Mullion, Bottom/middle			Immediately	$ 12.69
83	5304538938		Hinge, Flip Mullion, Upper		Appelez-nous	-
85	5304519081		Mullion Assembly, Flip, W/heater			Immediately	$ 176.51
209	140040569018		Closer Assembly, Door, Rh				$ 90.46
210	140040569026		Closer Assembly, Door, Lh				$ 90.41
211	5304519083		Bumper, Door, Bottom		Appelez-nous	-
13A	5304519071		Stop, Assembly, Lh Door				$ 16.07
15A	5304526839		Lens, Single Light, White			Immediately	$ 10.11
15C	140170035020		Lens, Double Light, Grey		Appelez-nous	-
85A	140045805011		Bearing, Spring, Flip Mullion		Appelez-nous	-
85B	140013719012		Spring, Flip Mullion		Appelez-nous	-
NI	5304531712		Door Stop Kit, Angle Reduction				$ 21.42
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.37
NI	5304532660		Alignment Kit, Door Adjustment		Appelez-nous	-
NI	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
NIA	5304531674		Heater, Flip Mullion			Immediately	$ 156.90
