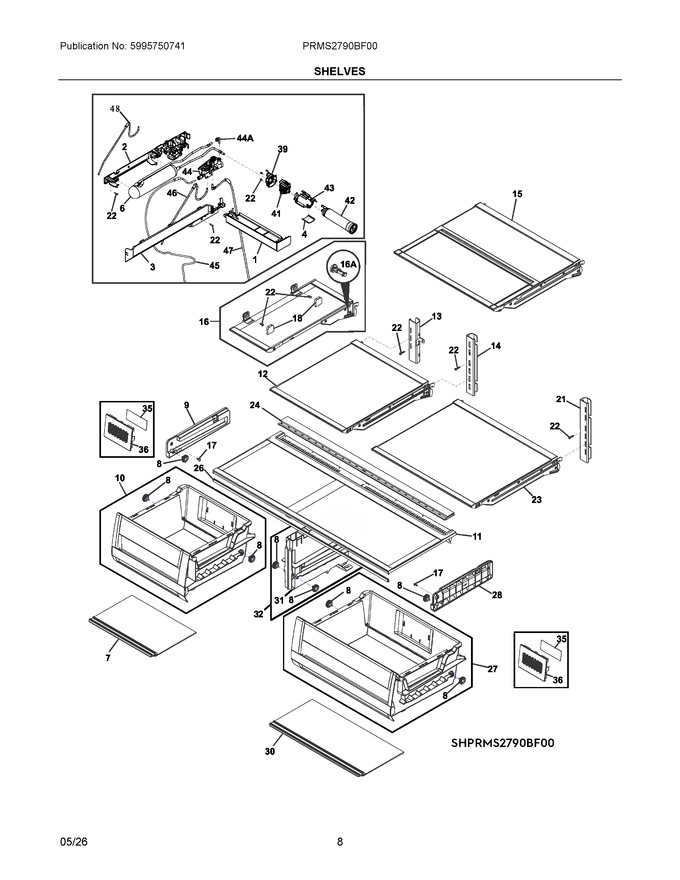

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529551		Cover, Filter Facia				$ 67.15
2	5304529543		Support, Water Valve, & Tank		Appelez-nous	-
3	5304529550		Cover, Water Tank		Appelez-nous	-
4	5304529552		Seal, Foam, 37 X 70mm		Appelez-nous	-
6	5304523037		Tank, Water, Disp Reservoir				$ 199.76
7	140047727270		Glass Cover, Compartment, Lh		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 18.71
9	5304534868		Rail, Crisper, Lh Side		Appelez-nous	-
10	140207543079		Drawer Assembly, Vegetable Box, Left		Appelez-nous	-
11	5304538949		Cover, Crisper, W/glass		Appelez-nous	-
12	5304536618		Shelf Assembly, Cantilever, Glass, Lh		Appelez-nous	-
13	140207561030		Bracket, Cantilever Shelf, Left		Appelez-nous	-
14	140207566039		Bracket, Cantilever Shelf, Center		Appelez-nous	-
15	5304536603		Shelf Assembly, Cantilever, Upper, Slide Under				$ 231.39
16	5304536616		Shelf Assembly, Flip Up, Lh, Glass		Appelez-nous	-
17	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 9.10
21	140207568050		Bracket, Cantilever Shelf, Right		Appelez-nous	-
22	811949503		Screw, Truss, 4.2 X 13				$ 3.37
23	5304536617		Shelf Assembly, Cantilever, Glass, Rh		Appelez-nous	-
24	5304536619		Housing Assembly, Auto Membrane, W/membrane		Appelez-nous	-
26	140026444095		Gasket, Crisper Drawer, Md36		Appelez-nous	-
27	140207543087		Drawer Assembly, Vegetable Box, Right		Appelez-nous	-
28	5304534869		Rail, Crisper, Rh Side		Appelez-nous	-
30	140047727288		Glass Cover, Compartment, Right		Appelez-nous	-
31	5304534905		Divider, Crisper Cover		Appelez-nous	-
32	140207544010		Divider, Crisper, Assembly, Md36, W/rollers		Appelez-nous	-
35	FRPAPK2RF		Frigidaire Pa Pk-2 Refill			Immediately	$ 35.71
36	5304529586		Cover, Freshness Boost				$ 19.28
39	5304536610		Cover, Manifold, Rear				$ 3.26
41	140156010054		Manifold, Water Filter			Immediately	$ 33.97
42	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
43	5304529547		Cover, Manifold, Front				$ 72.50
44	5304523052		Water Valve, Assembly, Triple			Immediately	$ 262.73
45	5304534886		Tubing, Valve, To Door Hinge				$ 34.52
46	5304523685		Tubing, Valve, To Fz Ice Maker				$ 61.68
47	5304529549		Tube, Water, Brown			Immediately	$ 25.62
48	5304534783		Tube, Valve, To Fresh Food, Ice Maker, Im 45 Cut				$ 11.91
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 28.82
NIA	5304519098		Screw, Trilob, M4 X 12				$ 3.37
