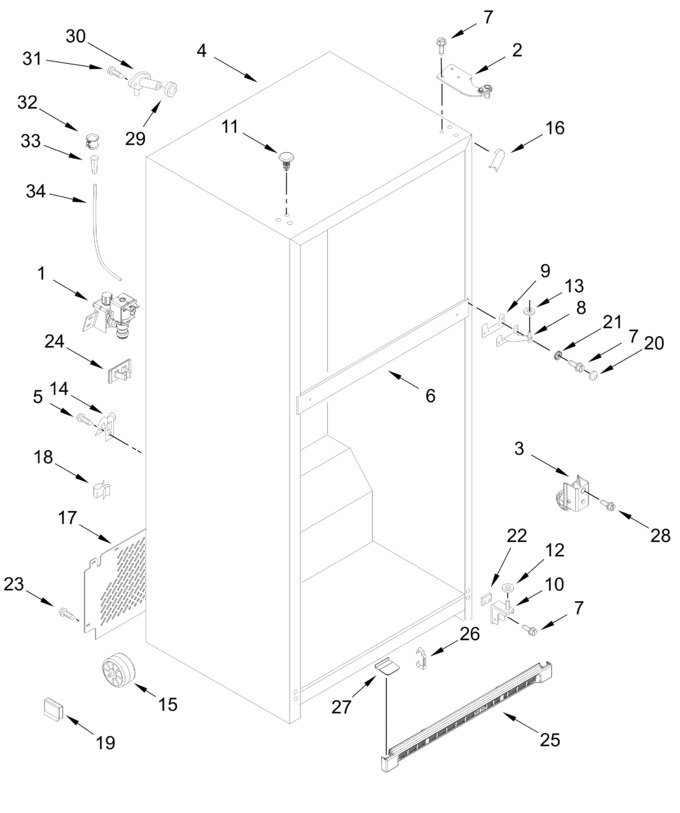

Cabinet Parts
Door Parts
Liner & Ice Maker Parts
Optional Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 170.90 | |||||
| 2 | WP2261963 | Hinge Assembly, Top (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | W10849386 | Roller Assembly (Replaces: W10725960) |
|
$ 103.28 | |||||
| 4 | ARIF06CCFE9BD0F0FDB975806FEDA58D816 | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 6 | ARIC034192546E98BAD7D6171A40486F101 | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 8.35 | ||||
| 11 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.80 | ||||
| 12 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 15 | WPW10475495 | Roller, Cabinet (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 16 | W11219642 | Filler, Corner (grey) |
|
Immediately | $ 11.57 | ||||
| 17 | W11307290 | Cover, Unit |
|
- | |||||
| 18 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 20 | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 17.30 | |||||
| 21 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 10.14 | |||||
| 22 | WP2201567 | Shim, Hinge (bottom) (Replaces: 2201567) |
|
Immediately | $ 7.34 | ||||
| 23 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 24 | W11501419 | Clip, Tube (Replaces: W10352217) |
|
Immediately | $ 10.89 | ||||
| 25 | W10860791 | Grille (grey) (Replaces: W10592144) |
|
$ 75.92 | |||||
| 26 | 2254385 | Clip, Grille |
|
$ 79.98 | |||||
| 27 | W10468611 | Cover, Toe Grille (grey) |
|
Immediately | $ 91.85 | ||||
| 28 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 29 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 30 | W11292468 | Fitting, Water Tube (Replaces: W11249272) |
|
Immediately | $ 147.56 | ||||
| 31 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 32 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 59.31 | |||||
| 33 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 34 | 2003812 | Tube, Water Inlet |
|
- |
