Cabinet Parts
Door Parts
Liner & Ice Maker Parts
Optional Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

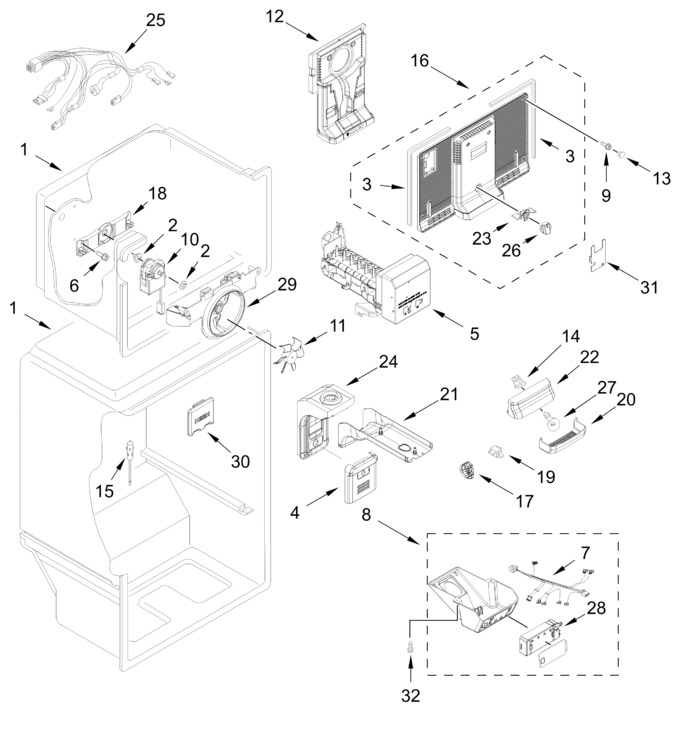

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI5B043898161B9E887C9B86F7C890BB1B | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | W11829833 | Cup, Air Diffuser (Replaces: W11788292) |
|
- | |||||
| 5 | W11696401 | Ice Maker Assembly (Replaces: W11359449) |
|
- | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W11829832 | Control Box Wire Assembly (Replaces: W11813763) |
|
- | |||||
| 8 | W11835308 | Control Box Assembly (Replaces: W11787868) |
|
- | |||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W11829841 | Plenum Assembly (includes Supplier Tape) (Replaces: W11757463) |
|
- | |||||
| 13 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.89 | |||||
| 14 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 16 | W11835309 | Evaporator Cover Assembly (Replaces: W11757452) |
|
- | |||||
| 17 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 38.37 | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 22.26 | ||||
| 20 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 21 | W11829835 | Cover, Air Diffuser (Replaces: W11783898) |
|
- | |||||
| 22 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 23 | W11829840 | Damper, Fc Air Control (Replaces: W11769744) |
|
- | |||||
| 24 | W11829838 | Air Diffuser Assembly (Replaces: W11769759) |
|
$ 69.60 | |||||
| 25 | W11829839 | Evaporator Fan Wire Assembly (includes Thermal Fuse) (Replaces: W11810256) |
|
$ 48.82 | |||||
| 26 | W11807624 | Knob, Fc Air Control (Replaces: W11750995) |
|
- | |||||
| 27 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 27.62 | ||||
| 28 | W11829830 | Electronic Control (Replaces: W11787861) |
|
$ 252.96 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | 2321148 | Housing, Thermistor |
|
- | |||||
| 31 | W10763751 | Cover, Hole |
|
- | |||||
| 32 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.57 |
