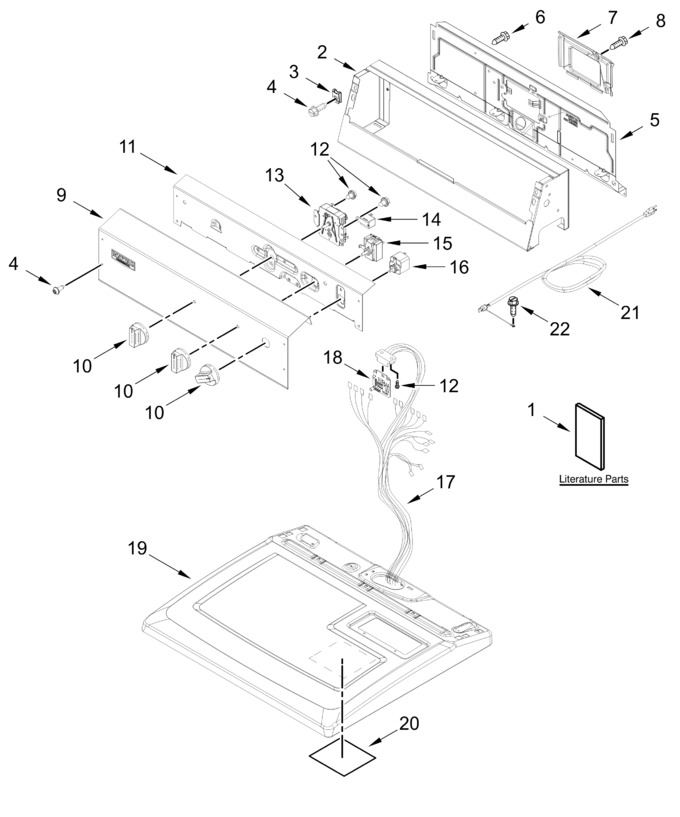

Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 2 | W11124005 | Console |
|
$ 227.07 | |||||
| 3 | WPW10131123 | U-nut (Replaces: W10131123) |
|
$ 7.71 | |||||
| 4 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.95 | |||||
| 5 | W10863352 | Panel, Rear (console) |
|
- | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 7 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 8 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.82 | |||||
| 9 | W11654025 | Fascia (Replaces: W11547354) |
|
$ 239.48 | |||||
| 10 | W11654027 | Knob (stainless) (Replaces: W11567082) |
|
$ 76.02 | |||||
| 11 | W11547331 | Bracket, Back |
|
- | |||||
| 12 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | WPW10185992 | Timer Assembly (60 Hz.) (Replaces: W10185992) |
|
Immediately | $ 182.13 | ||||
| 14 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 15 | W11106324 | Switch, Rotary (5 Pos) (Replaces: 3405155) |
|
$ 223.93 | |||||
| 16 | W11654026 | Switch, Push-to-start (Replaces: W11613271) |
|
$ 66.33 | |||||
| 17 | W11551562 | Harness, Main |
|
- | |||||
| 18 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 314.22 | ||||
| 19 | W10772880 | Top (white) |
|
$ 166.68 | |||||
| 20 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 29.48 | |||||
| 21 | W11222083 | Cord, Power (Replaces: W10869141) |
|
$ 120.59 |
