SELECT A DIAGRAM

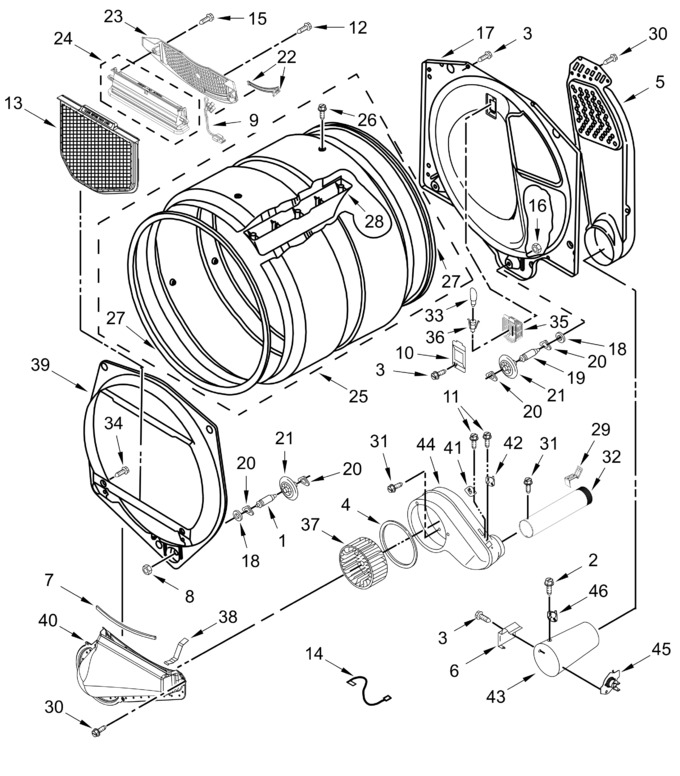

Bulkhead Parts
Burner Assembly Parts
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 5 | WPW10293765 | Assembly, Air Duct (Replaces: W10293765) |
|
$ 355.54 | |||||
| 6 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut, Hex (right Hand Thread) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 13 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 67.16 | |||||
| 14 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 86.59 | |||||
| 15 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: W11162455) |
|
$ 260.14 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | W11817605 | Roller, Support |
|
- | |||||
| 22 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 23 | W11086603 | Grill, Outlet (Replaces: W10692558) |
|
Immediately | $ 36.90 | ||||
| 24 | W11129408 | Assembly, Outlet Housing (Replaces: W10685669) |
|
Immediately | $ 53.28 | ||||
| 25 | W10545923 | Assembly, Drum |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 28 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 29 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 30 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 31 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 32 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 154.18 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 34 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 36 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 120.33 | ||||
| 38 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 8.83 | |||||
| 39 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 40 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 217.48 | |||||
| 41 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 42 | WP8318268 | Thermostat (Replaces: 8318268) |
|
Immediately | $ 80.57 | ||||
| 43 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 45 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 46 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 |
