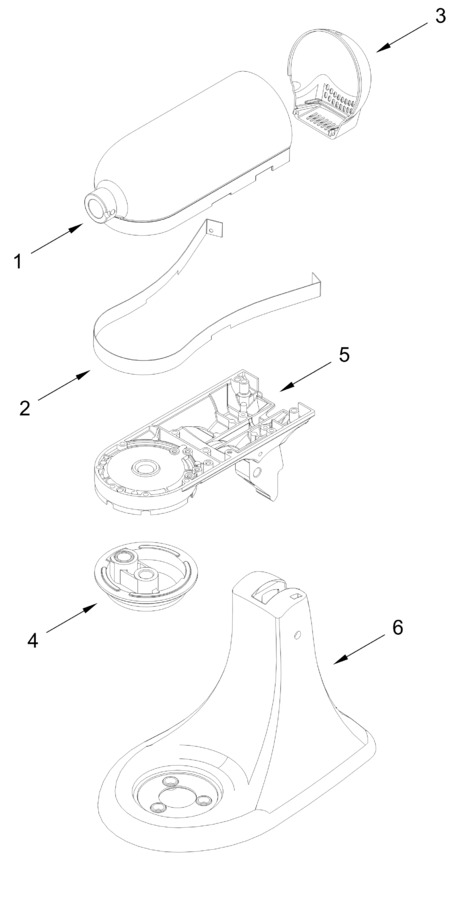

Base And Pedestal Unit Parts
Case, Gearing And Planetary Unit Parts
Color Variation Parts
Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 2 | W11562236 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | 24025322 | End Cover (empire Red) |
|
- | |||||
| 4 | 24028623 | Planetary (empire Red) |
|
- | |||||
| 5 | 24035084 | Lower Gearcase (empire Red) |
|
- | |||||
| 6 | W11131262 | Pedestal With Feet And Headlock (empire Red) (Replaces: 9702304) |
|
$ 97.71 |
