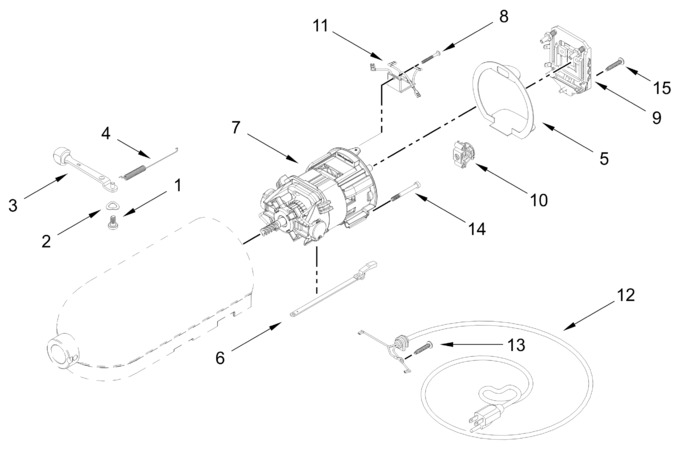

Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 2 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 3 | W11661858 | Lever, Speed Control Assembly (chrome) (Replaces: W10471364) |
|
$ 9.71 | |||||
| 4 | WP3183680 | Spring, Control Plate (Replaces: 3183680) |
|
$ 4.79 | |||||
| 5 | 2407751 | Seal, End |
|
- | |||||
| 6 | W11557271 | Link, Speed And Cam Assembly (Replaces: W11435668) |
|
Immediately | $ 8.47 | ||||
| 7 | W11678788 | Motor Assembly (Replaces: W11610686) |
|
Immediately | $ 116.84 | ||||
| 8 | W11084238 | Screw (Replaces: W10068260) |
|
- | |||||
| 9 | WPW10119326 | Control Plate Assembly (Replaces: W10119326) |
|
Immediately | $ 17.43 | ||||
| 10 | WPW10330804 | Governor Assembly (Replaces: W10330804) |
|
Immediately | $ 16.39 | ||||
| 11 | WPW10325124 | Board, Phase Control (Replaces: W10354307) |
|
Immediately | $ 17.30 | ||||
| 12 | W11249139 | Cord, Power (black) |
|
$ 47.75 | |||||
| 13 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 14 | W11678787 | Screw, Motor Mounting (Replaces: W11573199) |
|
- | |||||
| 15 | WP3179559 | Screw (Replaces: 3179559) |
|
$ 71.54 |
