01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

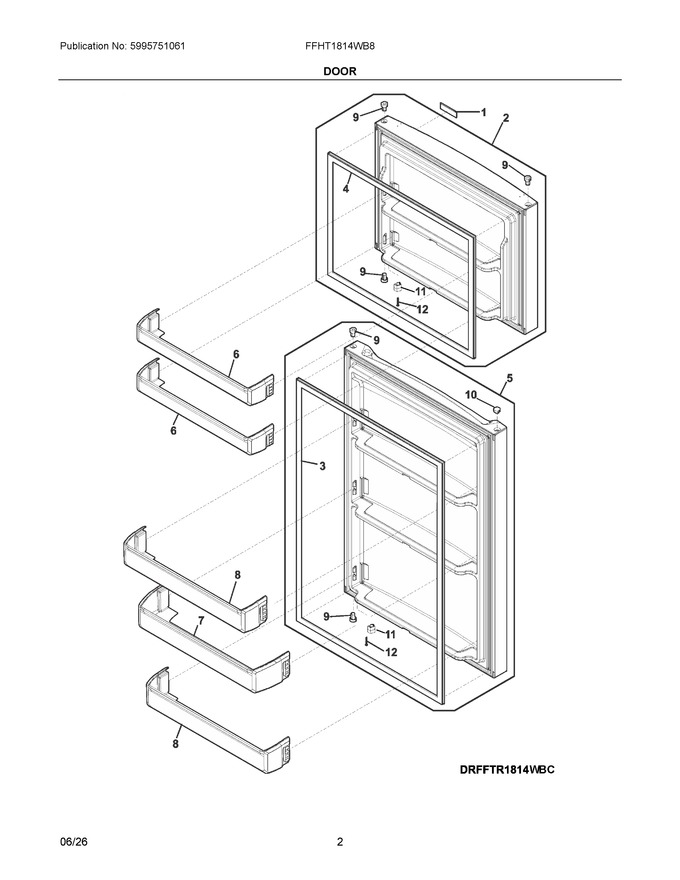

| 1 | 5304511145 | Badge, Frigidaire, Black |
|
$ 5.06 | |||||
| 2 | 5304538395 | Door-frz Foamed 30w Pk |
|
- | |||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 227.91 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 200.01 | ||||
| 5 | 5304538394 | Door-ff Foamed 30w Pk |
|
- | |||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 56.26 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 78.61 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 24.91 | ||||
| 9 | 5304522193 | Bearing, Hinge, Black |
|
$ 8.43 | |||||
| 10 | 5304522186 | Cover, Hinge Bearing, Black |
|
- | |||||
| 11 | 5304536274 | Stopper, Door, Black, Stopper |
|
$ 4.19 | |||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 |
