SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

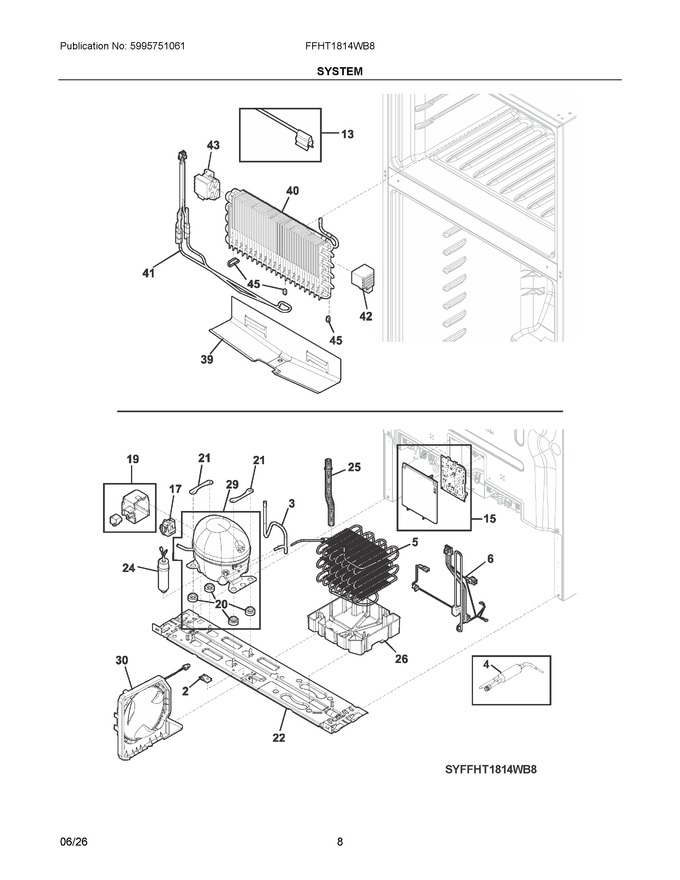

04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304537689		Tube-suction, Jumper			Immediately	$ 28.20
4	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 110.81
5	5304530007		Condenser, Dynamic			Immediately	$ 97.36
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 109.85
13	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 94.00
15	5304537124		Mainboard & Housing, Erf300, S/a			Immediately	$ 246.25
17	5304529285		Starter, Compressor, Tsd 2.1			Immediately	$ 80.05
19	5304528888		Cover, Electricals, Compressor				$ 23.99
20	5304522323		Grommet, Compressor				$ 42.98
21	5304524607		Clamp, Compressor				$ 3.21
22	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 71.62
24	5304528894		Capacitor, Run, 12uf			Immediately	$ 43.29
25	5304519743		Tube, Drain Extension			Immediately	$ 9.27
26	5304519674		Pan, Drain				$ 43.85
29	5304537795		Compressor, Esc55cbt, Gen2 Mx			Immediately	$ 206.94
30	5304522173		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 121.84
39	5304519679		Trough, Evap Drain				$ 64.04
40	5304522324		Evaporator, 8 Mm   (Replaces: 140148637014)			Immediately	$ 166.78
41	5304522325		Heater, Defrost			Immediately	$ 101.79
42	5304522326		Support, Evaporator, Rh				$ 8.43
43	5304522327		Support, Evaporator, Lh				$ 8.43
45	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.37

    View Diagram in Separate Window       Print Part List
