Chassis Parts (48 In)

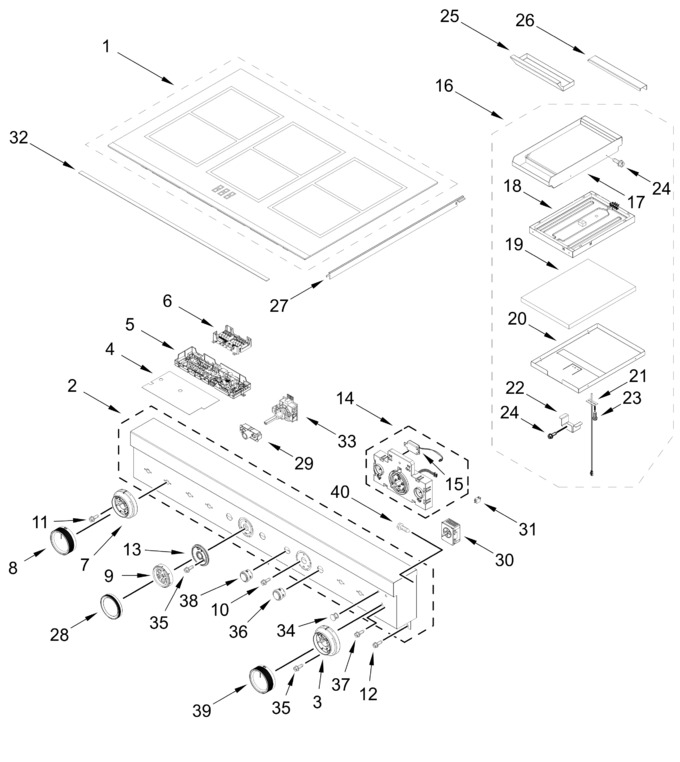

Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11796138		Glass Cooktop Assembly   (Replaces: W11750847)		Appelez-nous	-
2	W11822556		Console Panel (juniper)   (Replaces: W11768549)		Appelez-nous	-
3	W11820188		Bezel, Griddle (juniper)   (Replaces: W11741957)		Appelez-nous	-
4	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
5	W11789789		Manager, Powermax Appliance   (Replaces: W11767301)		Appelez-nous	-
6	W11766925		Manager, Appliance (expansion)   (Replaces: W11740607)		Appelez-nous	-
7	W11821266		Bezel, Induction (juniper)   (Replaces: W11748799)		Appelez-nous	-
8	W11821267		Knob, Induction (juniper)   (Replaces: W11731288)		Appelez-nous	-
9	W11821249		Knob, Oven Mode (juniper)   (Replaces: W11740400)		Appelez-nous	-
10	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
11	W11765213		Screw   (Replaces: W11736176)				$ 29.86
12	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
13	W11794777		Bezel Assembly, Oven (juniper)   (Replaces: W11738552)		Appelez-nous	-
14	W11789784		Interface, User   (Replaces: W11767393)		Appelez-nous	-
15	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
16	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,547.02
17	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
22	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
24	W10162096		Screw				$ 21.90
25	W10276497		Tray, Griddle Drip				$ 404.03
26	W11766929		Trim, Rear Griddle   (Replaces: W11696498)		Appelez-nous	-
27	W11766927		Trim, L-strip   (Replaces: W11690715)		Appelez-nous	-
28	W11794778		Knob, Oven Temperature (juniper)   (Replaces: W11740405)		Appelez-nous	-
29	W11766154		Sleeve, Bezel   (Replaces: W11697214)		Appelez-nous	-
30	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
31	W10116114		Light, Indicator Housing			Immediately	$ 93.57
32	W11766930		Gasket, Console   (Replaces: W11697609)		Appelez-nous	-
33	W11765221		Switch, Infinite   (Replaces: W11704441)			Immediately	$ 67.10
34	W10294500		Lens, Indicator Light				$ 7.69
35	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
36	W11790606		Push Button Start Assembly (juniper)   (Replaces: W11769832)		Appelez-nous	-
37	7101P30960		Screw		Appelez-nous	-
38	W11790603		Push Button Light Assembly (juniper)   (Replaces: W11769834)		Appelez-nous	-
39	W11820189		Knob, Griddle (juniper)   (Replaces: W11732239)		Appelez-nous	-
40	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11766172		Line Filter   (Replaces: W11733662)			Immediately	$ 182.07
	W11765166		Harness, User Interface Display   (Replaces: W11705029)		Appelez-nous	-
	W11766934		Harness, Console   (Replaces: W11702348)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
	W11790588		Harness, Communication   (Replaces: W11766036)		Appelez-nous	-
	W11790584		Harness, Main (30 In)   (Replaces: W11745818)		Appelez-nous	-
	W11790587		Harness, Main (18 In)   (Replaces: W11745819)		Appelez-nous	-
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
