SELECT A DIAGRAM

Chassis Parts (48 In)


Cooktop, Console, And Griddle Parts


Induction Module Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

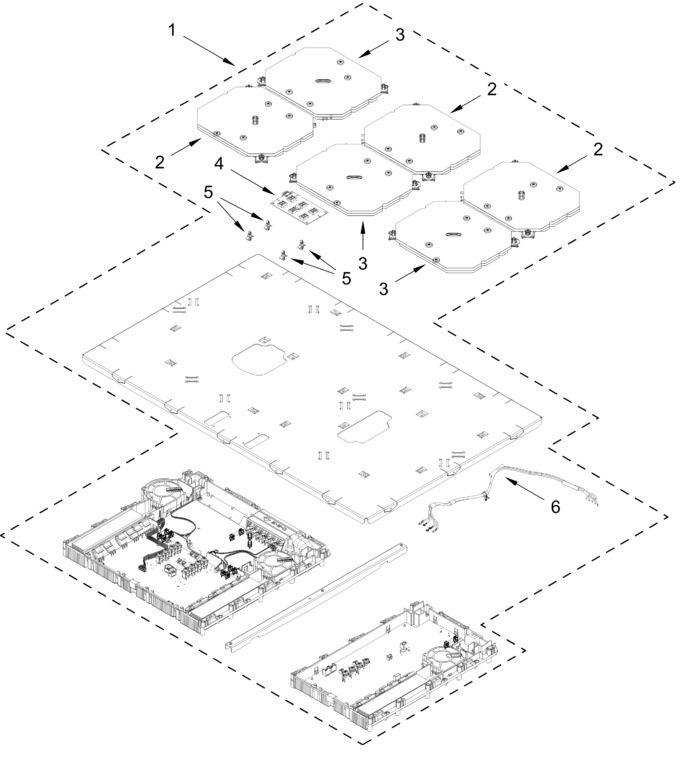

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11766935		Urso Induction Module   (Replaces: W11705256)		Appelez-nous	-
2	W11766155		Element, Induction (variant 2)   (Replaces: W11710573)		Appelez-nous	-
3	W11766157		Element, Induction (variant 1)   (Replaces: W11710574)		Appelez-nous	-
4	W11766936		User Interface Service Kit   (Replaces: W11726811)		Appelez-nous	-
5	W11765223		Locking Pin, User Interface   (Replaces: W11748007)		Appelez-nous	-
6	W11766938		Harness, Induction Module To Main Harness   (Replaces: W11704827)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
