View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

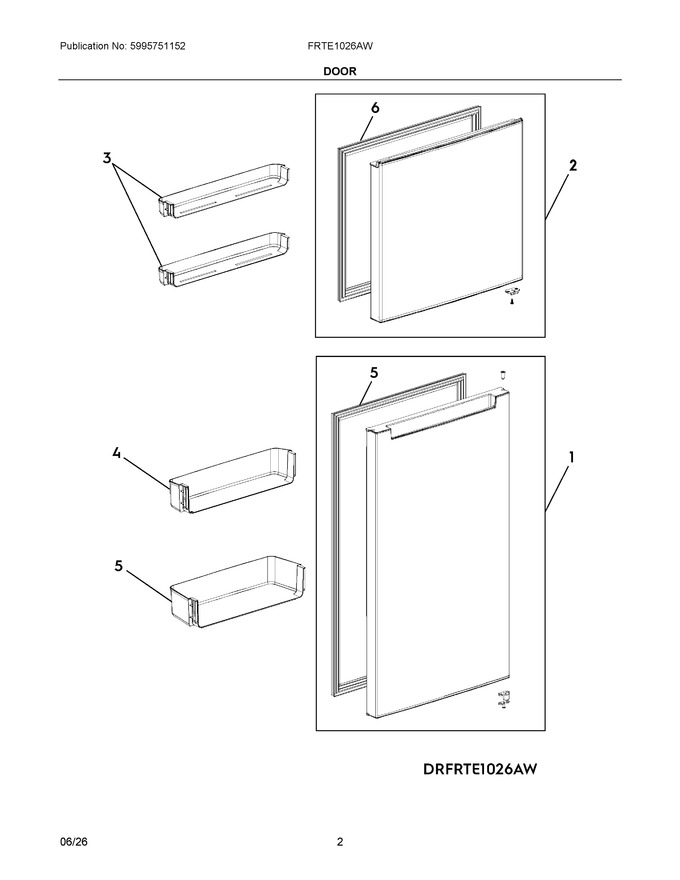

02 - Door
03 - Cabinet
04 - Shelves
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056049135 | Door Assembly Complete, Refrigerator, White |
|
- | |||||
| 2 | 4056049119 | Door Assembly Complete, Freezer, White |
|
- | |||||
| 3 | 4056049150 | Bin, Door Shelf, Freezer |
|
- | |||||
| 4 | 4056049168 | Bin, Door Shelf, Upper Fridge |
|
- | |||||
| 5 | 4056049176 | Bin, Door Shelf, Lower Fridge |
|
- | |||||
| 6 | 4056049127 | Gasket, Freezer Door, White |
|
- | |||||
| 7 | 4056049143 | Gasket, Refrigerator, Door |
|
- |
