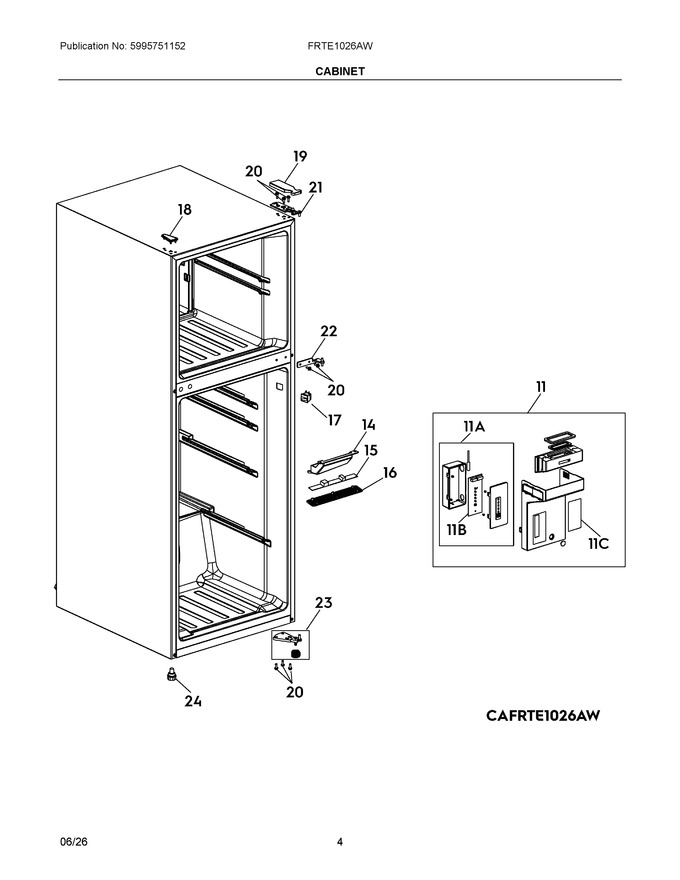

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056049226		Air Duct Assembly, Refrigerator		Appelez-nous	-
14	4056049275		Tray Drain, Upper Cabinet		Appelez-nous	-
15	5304536962		Light Bulb, Lamp				$ 21.03
16	4056049283		Lamp Cover, Assembly		Appelez-nous	-
17	5304498687		Switch, Lamp/light				$ 51.03
18	5304470308		Cover, Hinge Holes, White, Top				$ 16.22
19	4056049291		Hinge Cover Assembly, Upper Cabinet, Right		Appelez-nous	-
20	5304536971		Screw, Hinge		Appelez-nous	-
21	4055390647		Hinge Assembly, Upper Cabinet, Right		Appelez-nous	-
22	5304492659		Foot, Adjustable, Cabinet		Appelez-nous	-
23	4056049317		Hinge Lower Assembly, Adjustable Foot		Appelez-nous	-
24	4056049309		Hinge Assembly, Middle		Appelez-nous	-
11A	4056049234		Control And Display Board, Assembly, W/housing		Appelez-nous	-
11B	4056049242		User Interface Board, Pcb		Appelez-nous	-
11C	4056049259		Control Panel, User Interface		Appelez-nous	-
