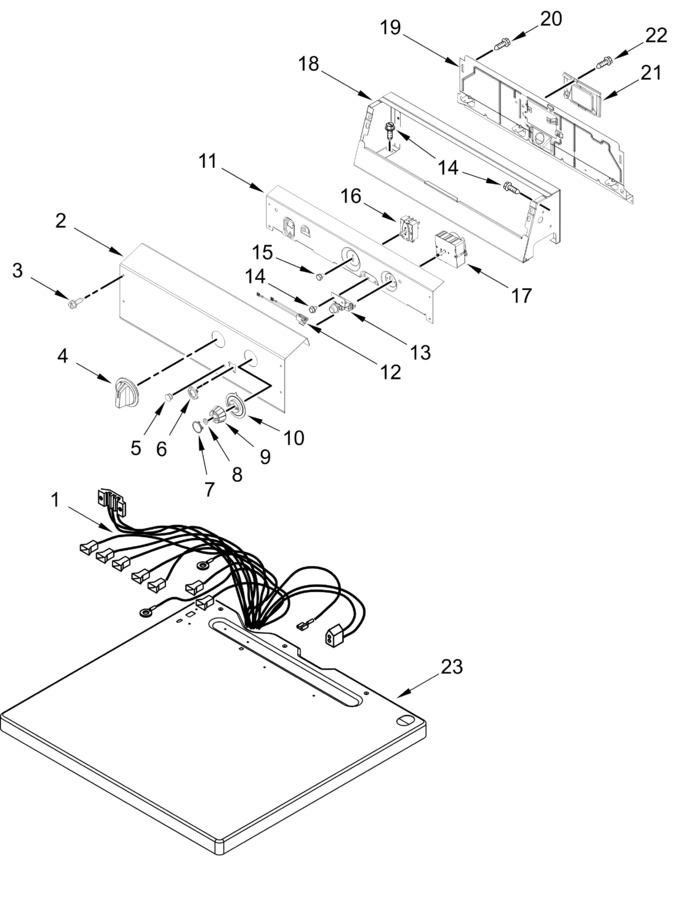

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153137		Harness, Main		Appelez-nous	-
2	W11322264		Fascia   (Replaces: W11299025)		Appelez-nous	-
3	WPW10131119		Screw   (Replaces: W10386302)				$ 6.95
4	W10492415		Knob (grey)				$ 19.64
5	WPW10133502		Assembly, Indicator Lights   (Replaces: W10133502)				$ 12.87
6	W10510149		Bezel - Pts			Immediately	$ 27.27
7	W10492418		Cap, Knob		Appelez-nous	-
8	W10155650		Nut, Hex				$ 13.37
9	W10906062		Knob		Appelez-nous	-
10	W10492417		Skirt, Dial		Appelez-nous	-
11	W10461071		Back Bracket, Non-coin		Appelez-nous	-
12	W10662107		Lamp, Indicator				$ 25.89
13	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 67.46
14	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
15	W10139100		Screw				$ 12.39
16	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 161.66
17	W11328723		Timer, Dryer   (Replaces: W11316903)				$ 244.05
18	W11124005		Console				$ 227.07
19	W10863352		Panel, Rear (console)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
21	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 128.35
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	W10492414		Top (white)		Appelez-nous	-
