SELECT A DIAGRAM

Bulkhead Parts


Cabinet Parts


Optional Parts (not Included)


Top And Console Parts

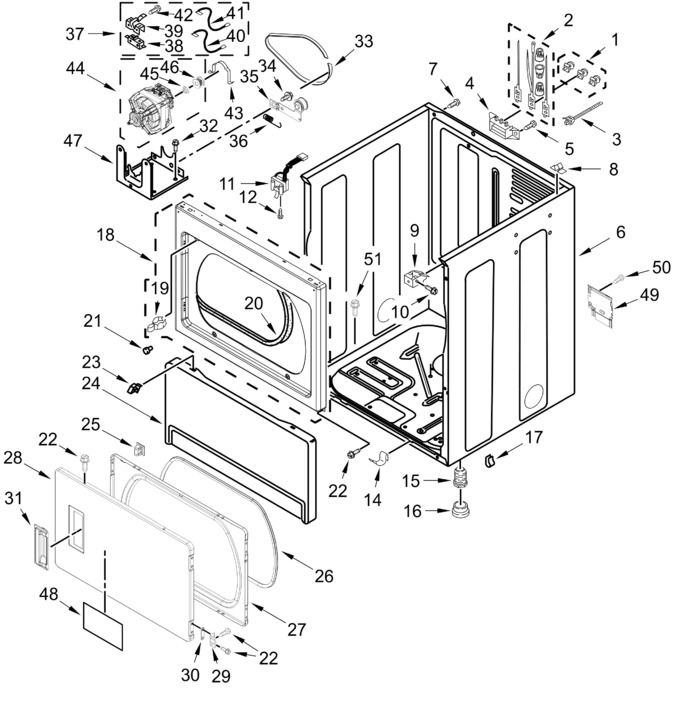

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
2	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
4	WP3397659		Terminal Block   (Replaces: 3397659)				$ 23.02
5	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
6	W11417441		Cabinet (white)   (Replaces: W11161907)				$ 419.21
7	W10850756		Screw   (Replaces: W10773242)				$ 7.76
8	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 7.70
9	3391846		Clip, Front Panel				$ 21.15
10	681615		Screw   (Replaces: 3391915)				$ 13.88
11	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 55.64
12	WP3395530		Screw   (Replaces: 697773)				$ 7.70
13	W10879744		Screw		Appelez-nous	-
14	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
15	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
16	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
17	WPW10131123		U-nut   (Replaces: W10131123)				$ 7.71
18	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 361.07
19	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
20	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
21	693152		Bumper				$ 10.96
22	WP488627		Screw   (Replaces: 342055)				$ 7.57
23	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
24	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
25	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
26	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
27	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
28	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
29	ARIFDECB4B0F007D952DD547982AE07326A		Assembly, Hinge & Pin		Appelez-nous	-
30	W11481394		Cover, Hinge Hole (white)   (Replaces: W11308618)				$ 21.32
31	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 75.75
32	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
33	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
34	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
35	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 83.77
36	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
37	279782		Assembly, Switch   (Replaces: 8066134)			Immediately	$ 54.44
38	279782		Switch, Belt   (Replaces: 3394881)			Immediately	$ 54.44
39	WP8066120		Lever, Belt Switch   (Replaces: 8066120)			Immediately	$ 33.11
40	W10167612		Wire, Belt Switch				$ 12.78
41	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
43	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
44	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 234.31
45	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
46	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
47	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
48	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 29.48
49	W11417441		Cover, Terminal   (Replaces: W11378153)				$ 419.21
50	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
51	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
	W10470674		Kit, 4-way Venting			Immediately	$ 76.65
	ARIEEDC88C3BFF4E4D837F653FD0A1B1399		(cabinet Ground Screw)		Appelez-nous	-
	ARI49056CBCEA95B374289EE824637D0633		Dryer Exhaust Kit Not Included		Appelez-nous	-
	49621		Foot, Optional (set Of 2, Extended Length, Not Included With Appliance)   (Replaces: 279810)			Immediately	$ 8.55
	WPW10279703		Hinge And Pin Assembly (silver)   (Replaces: W10279703)				$ 72.22

    View Diagram in Separate Window       Print Part List
