Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)

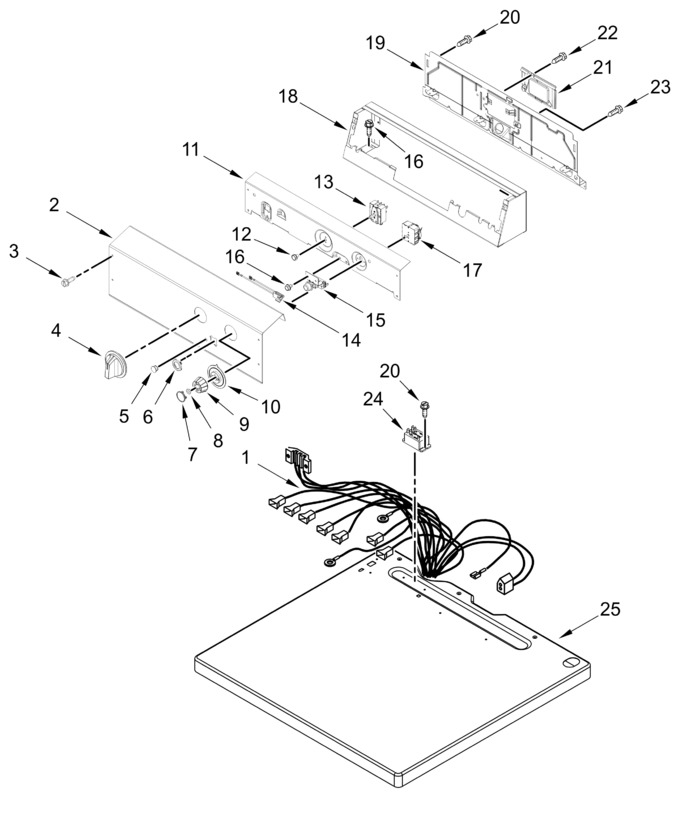

Top And Console Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10864827 | Harness, Main |
|
- | |||||
| 2 | W11101053 | Fascia (Replaces: W10845281) |
|
- | |||||
| 3 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.95 | |||||
| 4 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 26.27 | ||||
| 5 | WPW10133502 | Assembly, Indicator Lights (Replaces: W10133502) |
|
$ 12.87 | |||||
| 6 | W10510149 | Bezel - Pts |
|
Immediately | $ 27.27 | ||||
| 7 | WPW10133501 | Cap, Knob (Replaces: W10133501) |
|
$ 60.84 | |||||
| 8 | W10155650 | Nut, Hex |
|
$ 13.37 | |||||
| 9 | W10906058 | Knob |
|
- | |||||
| 10 | W10133506 | Skirt, Dial |
|
$ 18.95 | |||||
| 11 | W10461071 | Back Bracket, Non-coin |
|
- | |||||
| 12 | W10139100 | Screw |
|
$ 12.39 | |||||
| 13 | W10327100 | Switch, Cycle Selection |
|
$ 204.83 | |||||
| 14 | W10139459 | Lamp, Indicator |
|
- | |||||
| 15 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 67.46 | |||||
| 16 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 17 | W11101054 | Timer, Dryer (Replaces: W10878421) |
|
- | |||||
| 18 | W11124005 | Console |
|
$ 227.07 | |||||
| 19 | W10863352 | Panel, Rear (console) |
|
- | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 21 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 22 | WP90767 | Screw (Replaces: W10748311) |
|
Immediately | $ 7.82 | ||||
| 23 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 24 | WP1188043 | Relay, Heater 230v (Replaces: 1188043) |
|
$ 110.13 | |||||
| 25 | WPW10136704 | Top (white) (Replaces: W10136704) |
|
$ 260.43 |
