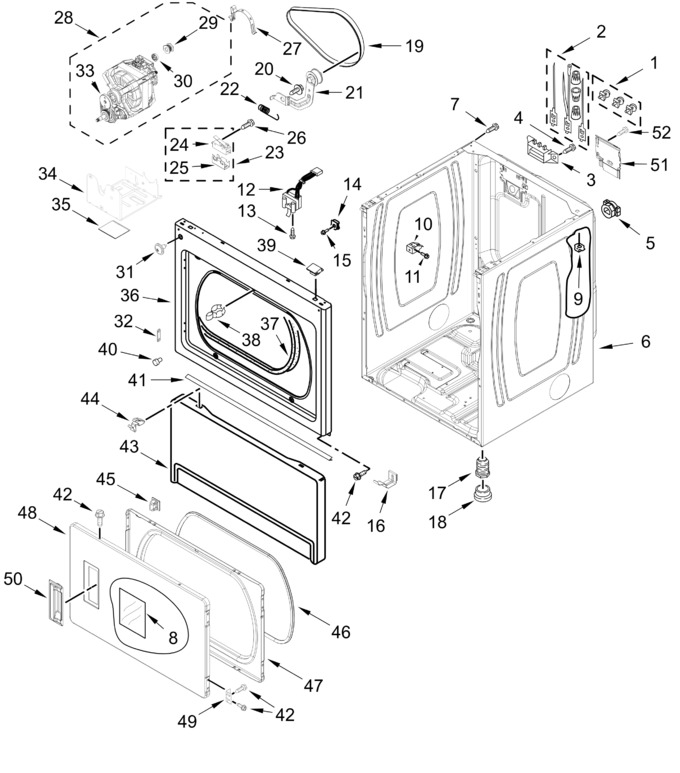

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
2	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
3	WP3397659		Terminal Block   (Replaces: 3397659)				$ 23.02
4	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
5	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
6	W11417441		Cabinet (white)   (Replaces: W11161907)				$ 419.21
7	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
8	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 29.48
9	WP98997		Clip   (Replaces: 98997)				$ 11.09
10	3391846		Clip, Front Panel				$ 21.15
11	681615		Screw   (Replaces: 3391915)				$ 13.88
12	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 55.64
13	WP3395530		Screw   (Replaces: 697773)				$ 7.70
14	WPW10131123		U-nut   (Replaces: W10131123)				$ 7.71
15	WPW10131119		Screw   (Replaces: W10386302)				$ 6.95
16	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
17	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
18	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
19	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
20	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
21	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 90.07
22	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
23	W11236387		Assembly, Switch   (Replaces: W11159572)		Appelez-nous	-
24	W10410873		Assembly, Switch Actuator		Appelez-nous	-
25	W11247665		Bracket, Switch   (Replaces: W11159569)				$ 26.40
26	3400934		Assembly, Screw And Insulator		Appelez-nous	-
27	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
28	W11215537		Assembly, Motor   (Replaces: W10918087)				$ 533.79
29	W10167237		Pulley		Appelez-nous	-
30	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
31	W10879744		Screw		Appelez-nous	-
32	W10191265		Plug, Hinge (white)				$ 44.28
33	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 35.23
34	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
35	W11113654		Pad, Sound   (Replaces: W10836094)				$ 22.18
36	W10234293		Panel, Front		Appelez-nous	-
37	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
38	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
39	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 7.70
40	693152		Bumper				$ 10.96
41	W10576519		Seal, Deflector		Appelez-nous	-
42	WP488627		Screw   (Replaces: 342055)				$ 7.57
43	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
44	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
45	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
46	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
47	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
48	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
49	WPW10279703		Hinge And Pin Assembly (silver)   (Replaces: W10279703)				$ 72.22
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 75.75
51	W11417441		Cover, Terminal   (Replaces: W11378153)				$ 419.21
52	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
	ARI49056CBCEA95B374289EE824637D0633		Dryer Exhaust Kit Not Included		Appelez-nous	-
	49621		Foot, Optional (set Of 2, Extended Length, Not Included With Appliance)   (Replaces: 279810)			Immediately	$ 8.55
	W10470674		Kit, 4-way Venting			Immediately	$ 76.65
