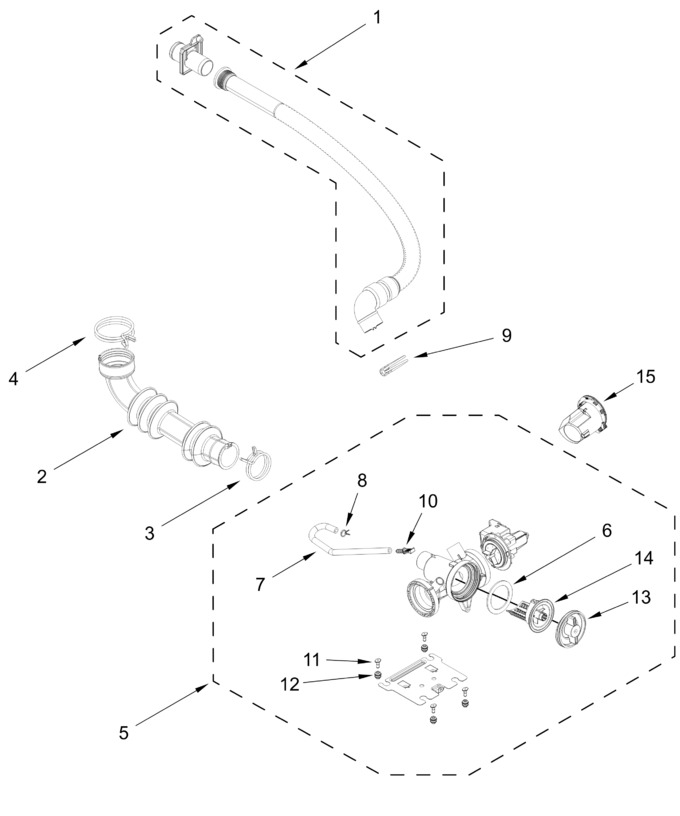

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11549455		Drain Hose Assembly   (Replaces: W11507443)			Immediately	$ 36.30
2	W11316056		Hose, Tub To Pump   (Replaces: W10921959)				$ 35.69
3	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 8.58
4	W10273034		Clamp, Vent Hose				$ 11.22
5	W11747098		Pump Assembly   (Replaces: W11718113)				$ 172.49
6	W11316613		Seal, Filter Cap   (Replaces: W10921839)				$ 23.28
7	W11747861		Hose, Drain (pump)   (Replaces: W11718104)		Appelez-nous	-
8	W11316666		Clamp, Hose   (Replaces: W10834076)		Appelez-nous	-
9	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
10	W11748891		Plug, Drain (pump)   (Replaces: W11741590)		Appelez-nous	-
11	W11316664		Grommet, Pin (pump)   (Replaces: W11133160)				$ 22.40
12	W11316663		Grommet (pump)   (Replaces: W11126910)				$ 22.49
13	W11316610		Cap, Filter   (Replaces: W10921834)				$ 58.51
14	W11458347		Filter, Pump   (Replaces: W11319788)				$ 9.72
15	W11771918		Assembly, Drain Pump Housing   (Replaces: W11715426)			Immediately	$ 117.31

    View Diagram in Separate Window       Print Part List
