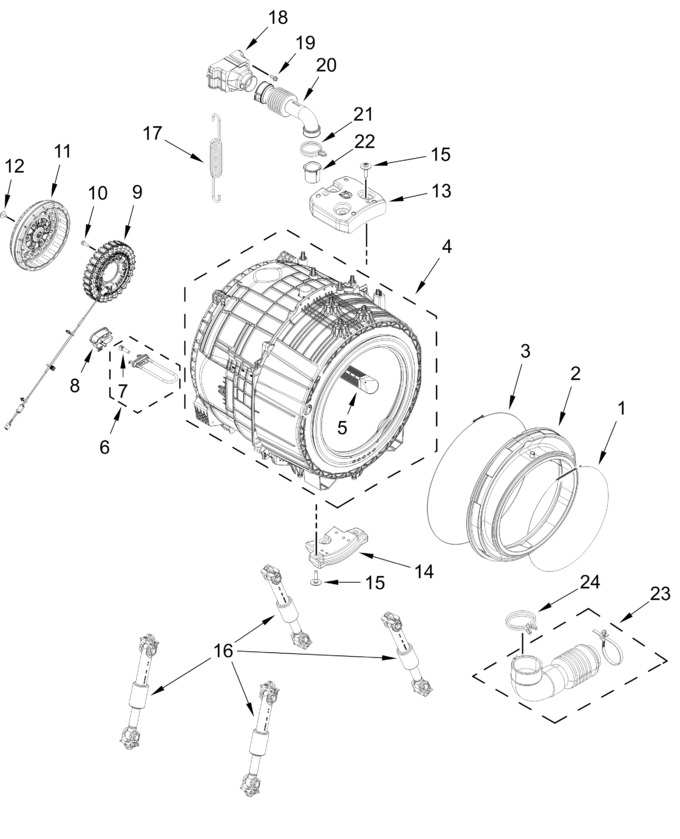

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11266654		Retainer, Front Panel To Bellow   (Replaces: W10818945)			Immediately	$ 26.94
2	W11746638		Bellow   (Replaces: W11714349)			Immediately	$ 280.43
3	W11314649		Retainer, Bellow To Tub   (Replaces: W11048199)			Immediately	$ 22.35
4	W11772380		Tub And Drum Assembly		Appelez-nous	-
5	W11460395		Baffle, Drum   (Replaces: W11198668)			Immediately	$ 112.53
6	W11314664		Heater Assembly   (Replaces: W10918779)			Immediately	$ 184.95
7	W11314664		Sensor, Ntc   (Replaces: W10919909)			Immediately	$ 184.95
8	W11314776		Shield, Heater   (Replaces: W10909418)				$ 94.95
9	W11833000		Motor Assembly   (Replaces: W11803561)				$ 352.51
10	W11314661		Screw, Stator   (Replaces: W11035597)				$ 14.74
11	W11314361		Rotor, Motor   (Replaces: W10916241)			Immediately	$ 178.95
12	W11557803		Screw, Rotor   (Replaces: W11354072)			Immediately	$ 11.53
13	W11815701		Counterweight, Top   (Replaces: W11517116)		Appelez-nous	-
14	W11815702		Counterweight, Bottom   (Replaces: W11517117)		Appelez-nous	-
15	W11314651		Screw, Counterweight   (Replaces: W11235083)			Immediately	$ 14.84
16	W11316766		Damper Assembly   (Replaces: W11094464)			Immediately	$ 95.95
17	W11771999		Spring, Suspension   (Replaces: W11714799)			Immediately	$ 16.84
18	W11316248		Enclosure, Vent   (Replaces: W10919157)			Immediately	$ 196.40
19	W11230114		Screw   (Replaces: 8540513)				$ 13.94
20	W11316274		Hose, Ventilation   (Replaces: W10919155)			Immediately	$ 35.48
21	WP371502		Clamp, Hose   (Replaces: 371507)				$ 12.31
22	W11557921		Deflector, Vent Port   (Replaces: W11495086)			Immediately	$ 16.78
23	W11599075		Hose, Ventilation   (Replaces: W11495084)				$ 23.98
24	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 8.81
