SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Top Venting Parts

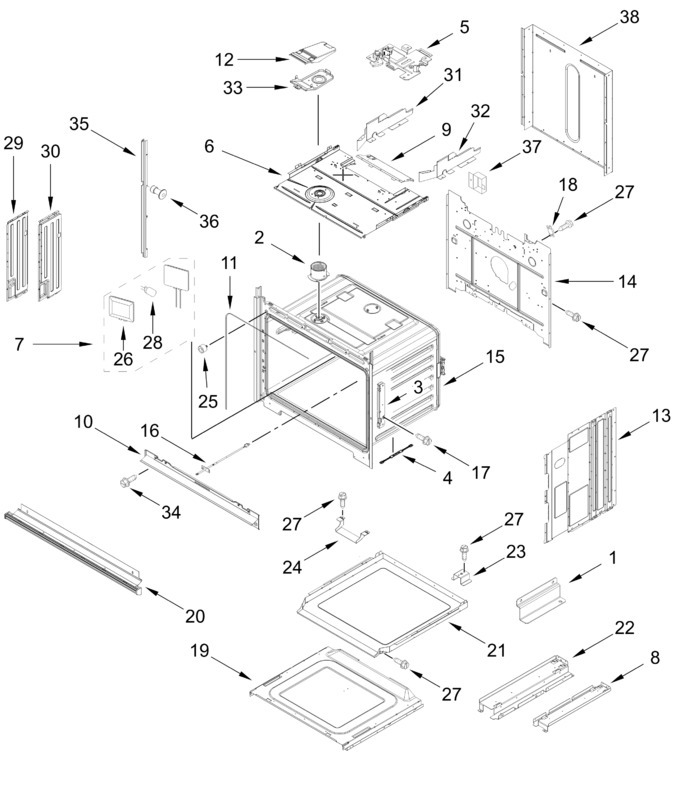

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11818393		Bracket, Side   (Replaces: W11751065)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11837005		Latch, Door   (Replaces: W11814645)		Appelez-nous	-
6	W11818414		Chassis, Top   (Replaces: W11729557)		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 107.48
8	W10283021		Support, Base (right)		Appelez-nous	-
9	W11818416		Deflector, Fan   (Replaces: W11729909)		Appelez-nous	-
10	W11743956		Vent, Combo Center   (Replaces: W11701588)				$ 171.29
11	W11692454		Gasket   (Replaces: W11608108)				$ 146.92
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	W11223327		Back, Chassis		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 75.86
20	W11648980		Bottom Vent Assembly (stainless)   (Replaces: W11467754)			Immediately	$ 185.39
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W11818384		Support, Base (left)   (Replaces: W11738531)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	7101P42660		Screw		Appelez-nous	-
28	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
29	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
30	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
31	W11186391		Deflector, Chassis (left)		Appelez-nous	-
32	W11186398		Deflector, Chassis (right)		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
35	W11235457		Trim, Left Side (black)				$ 79.72
36	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
37	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
38	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
	W11837007		Harness, Door Latch   (Replaces: W11814358)		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
	W11837006		Harness, Main   (Replaces: W11671612)		Appelez-nous	-
	W11249930		Harness, Communication		Appelez-nous	-
	W11818396		Insulation, Cavity   (Replaces: W11704930)		Appelez-nous	-
	W11356991		Harness, Ground Console Combo		Appelez-nous	-
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	4448664		Clamp, Conduit				$ 21.41
	W11235458		Trim, Right Side (black)				$ 79.72
