SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Top Venting Parts

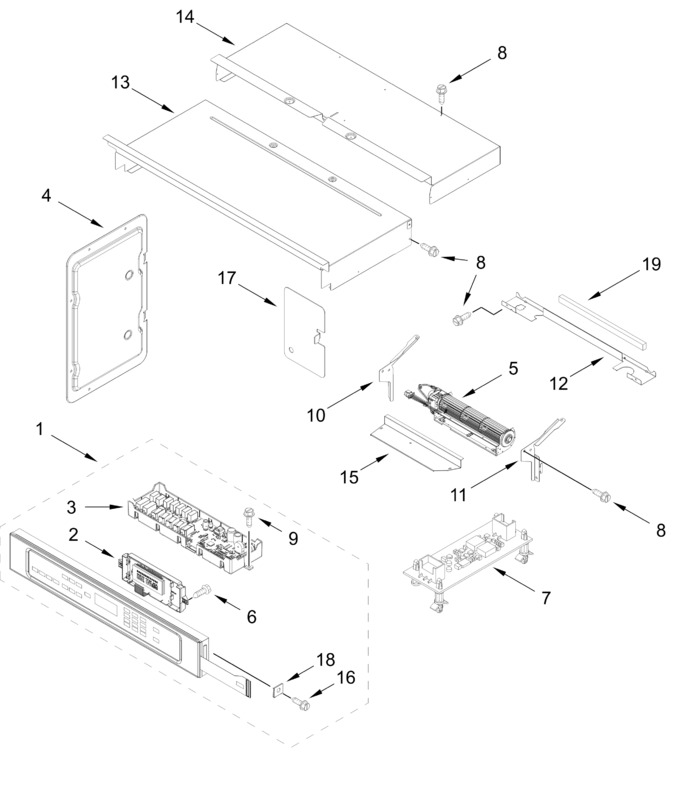

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11818154		Control Panel Assembly (stainless)		Appelez-nous	-
2	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 423.85
3	W11837008		Control, Maxwell   (Replaces: W11815723)		Appelez-nous	-
4	W11754860		Panel, Combo Chassis Side   (Replaces: W11659057)		Appelez-nous	-
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	7101P40360		Screw		Appelez-nous	-
7	WPW10412514		Board, Wide Interface   (Replaces: W10412514)				$ 318.64
8	7101P42660		Screw		Appelez-nous	-
9	7101P42760		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10655462		Bracket, Blower (right)		Appelez-nous	-
12	W11754858		Divider, Chassis Back   (Replaces: W11664750)		Appelez-nous	-
13	W10318158		Cover, Top Front 30 In Chassis		Appelez-nous	-
14	W10588732		Cover, Top Back 30 In Chassis				$ 225.86
15	W10681157		Cover, Combo Blower		Appelez-nous	-
16	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
17	W11533682		Cover, Wifi		Appelez-nous	-
18	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
19	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14

    View Diagram in Separate Window       Print Part List
