SELECT A DIAGRAM

Diagram for Burner Box And Griddle Parts
Burner Box And Griddle Parts

Diagram for Chassis Parts (48 In)
Chassis Parts (48 In)

Diagram for Cooktop, Burner, And Grate Parts
Cooktop, Burner, And Grate Parts

Diagram for Internal Oven Parts (18 In)
Internal Oven Parts (18 In)

Diagram for Internal Oven Parts (30 In)
Internal Oven Parts (30 In)

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts (18 In)
Oven Door Parts (18 In)

Diagram for Oven Door Parts (30 In)
Oven Door Parts (30 In)

Diagram for Oven Parts (18 In)
Oven Parts (18 In)

Diagram for Oven Parts (30 In)
Oven Parts (30 In)

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11820194 Control Panel (juniper)   (Replaces: W11768467) Appelez-nous -
2 W11805919 Orifice Holder Assembly   (Replaces: W11775872) Appelez-nous -
3 ARIE067872F6F52DD2FD69D26241530A01D Orifice (not Serviced, Must Order Orifice Holder Assembly) Appelez-nous -
4 W11788750 Igniter   (Replaces: W11759723) In-Stock Immediately $ 35.81

5 W11684564 Electrode, Spring   (Replaces: W10827923) In-Stock Immediately $ 12.65

6 W11676349 Screw, Burner Rail (m4)   (Replaces: 8286921) In-Stock Immediately $ 14.76

7 3196172 Screw In-Stock Immediately $ 13.47

8 W11789234 Grate Burner Kit Special Order $ 565.75

9 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

10 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

11 W11820168 Bezel Assembly, Gas Burner (juniper)   (Replaces: W11801798) Appelez-nous -
12 W11355250 Manager, Appliance (expansion)   (Replaces: W10871065) Special Order $ 451.62

13 W11576413 Cap, Stack Burner (black)   (Replaces: W11346163) Special Order $ 89.25

14 W11841722 Cap, Burner (black, Set Of 4)   (Replaces: W11803095) Appelez-nous -
15 W11436986 Flame Spreader, Stack   (Replaces: W11348511) In-Stock Immediately $ 71.73

16 W11820185 Knob, Oven Mode (juniper)   (Replaces: W11752311) Appelez-nous -
17 W10162096 Screw Special Order $ 21.90

18 W11788773 Panel, Left Cooktop (black)   (Replaces: W11758655) Appelez-nous -
19 W11789677 Panel, Center Cootkop (black)   (Replaces: W11758657) Special Order $ 425.24

20 W11789786 Panel, Right Cooktop (black)   (Replaces: W11758659) Appelez-nous -
21 W11788768 Screw   (Replaces: W11719156) Appelez-nous -
22 W11674763 Screw   (Replaces: W10919387) Special Order $ 14.76

23 W10271524 Trim, T-strip (black) Special Order $ 212.34

24 W11794773 Knob, Dual (juniper)   (Replaces: W11732025) Appelez-nous -
25 ARI4865CFF8563D5F77A3C528079CFC39A7 Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page) Appelez-nous -
26 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

27 W11794777 Bezel Assembly, Oven (juniper)   (Replaces: W11738552) Appelez-nous -
28 W11820186 Knob, Oven Temperature (juniper)   (Replaces: W11752297) Appelez-nous -
29 W11790545 Interface, User   (Replaces: W11777687) Appelez-nous -
30 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

31 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

32 W10291193 Trim, L-strip Appelez-nous -
33 W10323252 Trim, Island Insert Special Order $ 207.83

34 W10294500 Lens, Indicator Light Special Order $ 7.69

35 W11788785 Screw   (Replaces: W11755190) Appelez-nous -
36 W11790606 Push Button Start Assembly (juniper)   (Replaces: W11769832) Appelez-nous -
37 W11516014 Island Trim   (Replaces: W11476244) Special Order $ 443.60

38 W11790603 Push Button Light Assembly (juniper)   (Replaces: W11769834) Appelez-nous -
39 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

40 7101P33860 Screw Appelez-nous -
41 W11820188 Bezel, Griddle (juniper)   (Replaces: W11741957) Appelez-nous -
42 W11790550 Manager, Powermax Appliance   (Replaces: W11777697) Appelez-nous -
43 3196265 Screw   (Replaces: 3400099) Appelez-nous -
44 W11820189 Knob, Griddle (juniper)   (Replaces: W11732239) Appelez-nous -
45 7101P30960 Screw Appelez-nous -
46 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

47 WPW10254050 Screw   (Replaces: W10254050) Special Order $ 9.22

W11788751 Igniter   (Replaces: W11759741) Appelez-nous -
W11531098 Flame Spreader   (Replaces: W11352197) Special Order $ 80.72

ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
ARI8C7BF12CCD21B32D58AD00F381DE6E87 (left Center Front) Appelez-nous -
W11789780 Orifice Holder Assembly   (Replaces: W11731199) Appelez-nous -
W11789779 Orifice Holder Assembly   (Replaces: W11731193) Appelez-nous -
W11789781 Orifice Holder Assembly   (Replaces: W11731202) Appelez-nous -
W11789783 Orifice Holder Assembly   (Replaces: W11731196) Appelez-nous -
ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
W11794774 Knob, Single (juniper)   (Replaces: W11731285) Appelez-nous -
ARICC315D341C2410B1C23C8B42A71BD901 (left Rear, Left Center Front, Left Center Rear, Right Center Rear) Appelez-nous -
ARIC0A1423F8DB18A76A62C2589F952DA0B (left Center Front, Left Center Rear, Right Center Rear) Appelez-nous -
ARI1E01456C21FFBF0D8455E89259237D34 (for 30 In Oven) Appelez-nous -
ARI91512E59DD97B6DE955CDC6C52849EDE (right Center Front) Appelez-nous -
ARI13639990676F4BCB7E963B79A24869B9 (left Center Rear) Appelez-nous -
ARI2DF9F568FCE4D6018097574F1022E13B (right Center Rear) Appelez-nous -
W11794771 Knob, Oven Mode (juniper)   (Replaces: W11758665) Appelez-nous -
W11794778 Knob, Oven Temperature (juniper)   (Replaces: W11740405) Appelez-nous -
W11788752 Igniter   (Replaces: W11759742) Appelez-nous -
ARI84ED65FEA174F07BF8F003F72E5F11AC (left Front, Right Center Front) Appelez-nous -
ARIE201EE7BE318B20F5A8E22F5F2B645F9 (for 18 In Oven) Appelez-nous -
W11531096 Flame Spreader   (Replaces: W11352193) Special Order $ 81.92

ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4 (for 2 Oven Knobs) Appelez-nous -
ARI03CD409BD699D70C62A402990434B427 (for 6 Cooktop Burners) Appelez-nous -
W11805920 Orifice Holder Assembly   (Replaces: W11775873) Appelez-nous -
ARI1D437A95BB9951E88D2C823ABD70D6CC (left Rear, Left Center Front, Right Center Rear) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

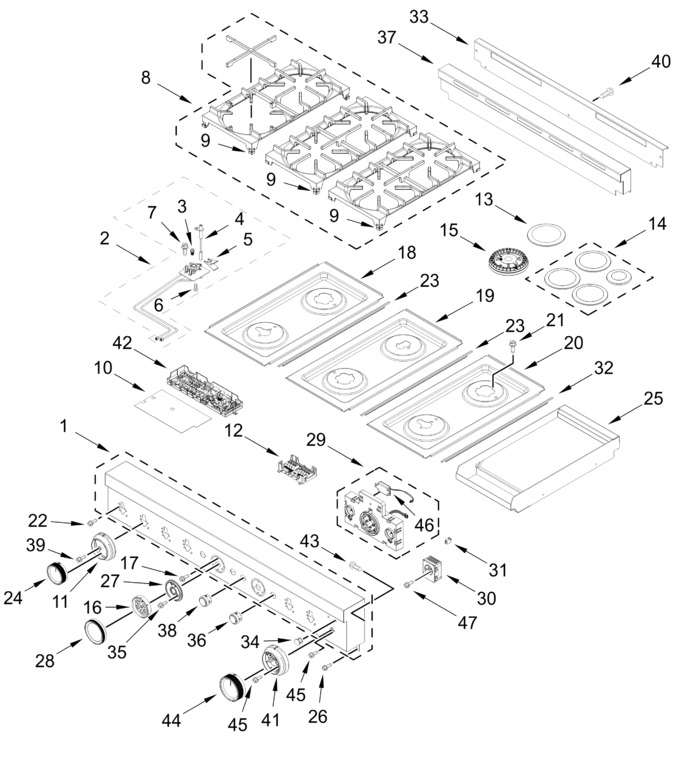

Diagram for KFGD948SJP00
