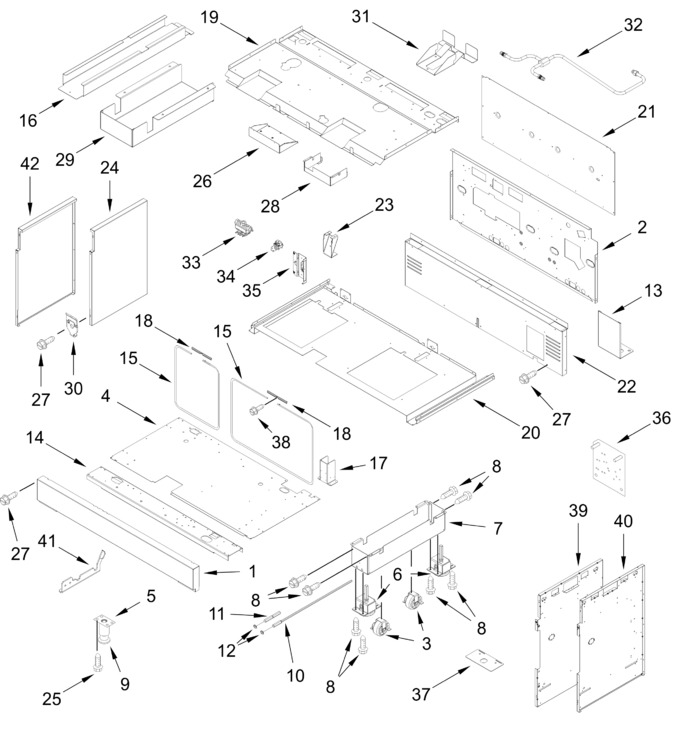

Chassis Parts (48 In)


Cooktop, Burner, And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11820190		Kickplate (juniper)   (Replaces: W11726303)		Appelez-nous	-
2	W11766939		Back, Chassis   (Replaces: W11758514)		Appelez-nous	-
3	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
4	W11320536		Duct, Bottom (48 In)   (Replaces: W11110260)		Appelez-nous	-
5	WP9759118		Plate, Mounting   (Replaces: 9759118)				$ 154.94
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11765962		Bracket, Rear Chassis   (Replaces: W11758326)		Appelez-nous	-
14	W11369238		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Cavity (30 In)   (Replaces: W11115328)			Immediately	$ 74.56
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W11362015		Retainer, Gasket (9 In)				$ 158.18
19	W11388055		Top, Chassis   (Replaces: W11324984)		Appelez-nous	-
20	W11320545		Chassis, Bottom   (Replaces: W11040800)		Appelez-nous	-
21	W11320600		Panel, Back Top   (Replaces: W11103335)		Appelez-nous	-
22	W11789805		Panel, Back Bottom   (Replaces: W11780250)		Appelez-nous	-
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
25	3400518		Screw				$ 13.63
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	W11369237		Cabinet, Appliance Manager				$ 89.38
29	W11368831		Channel, Wire		Appelez-nous	-
30	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
31	W11190223		Bracket, Bake Alignment				$ 82.80
32	W11355235		Tube, Valve (double)   (Replaces: W11112366)				$ 189.53
33	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 336.96
34	W10311268		Valve, Single			Immediately	$ 369.61
35	W10145362		Bracket-board, Dsi				$ 81.33
36	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 239.59
37	W10115855		Holder, Strain Relief		Appelez-nous	-
38	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
39	W11750310		Retainer, Left Side Chassis   (Replaces: W11683297)		Appelez-nous	-
40	W11750312		Retainer, Right Side Chassis   (Replaces: W11683296)		Appelez-nous	-
41	W10130760		Bracket, Moving Console (left)				$ 75.94
42	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
	W10130759		Bracket, Moving Console (right)				$ 75.94
	W11115326		Gasket, Cavity (18 In)			Immediately	$ 201.26
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
