SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

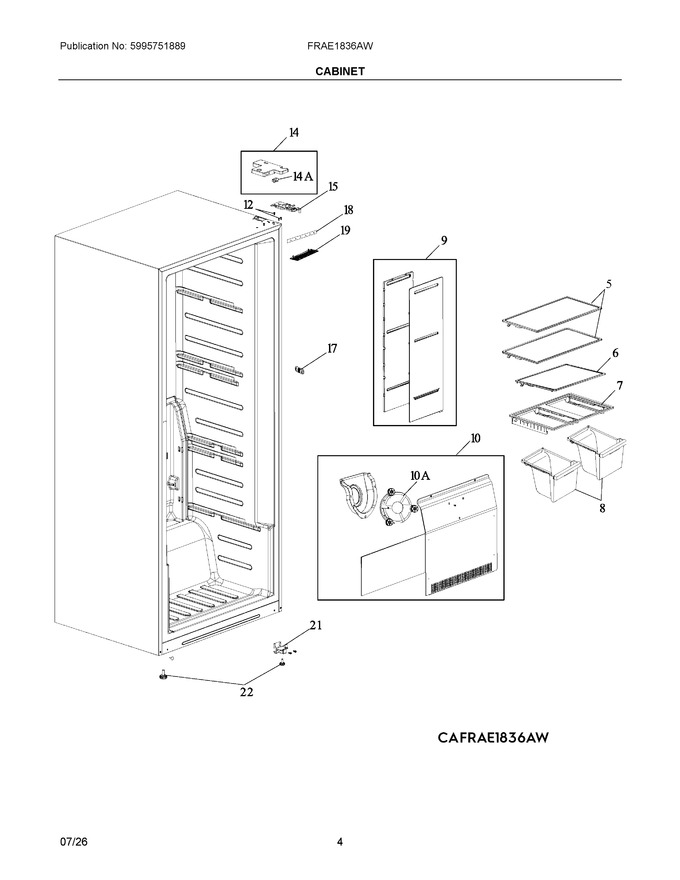

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	4056049929		Glass Shelf, Assembly, Upper Freezer		Appelez-nous	-
6	4056049937		Glass Shelf, Assembly, Middle Freezer		Appelez-nous	-
7	4056049945		Glass Shelf, Assembly, Lower Freezer		Appelez-nous	-
8	4056049952		Drawer Assembly, Bottom, Freezer		Appelez-nous	-
9	4056049960		Air Duct Assembly, Upper Cabinet, Freezer		Appelez-nous	-
10	4056049978		Air Duct Assembly, Lower Cabinet, Freezer, W/fan		Appelez-nous	-
12	5304536971		Screw, Hinge		Appelez-nous	-
14	5304523667		Cover Assembly, Hinge, Upper, W/switch		Appelez-nous	-
15	5304523669		Hinge, Door, Upper		Appelez-nous	-
17	4056050612		Sensor Cover, Freezer Chamber		Appelez-nous	-
18	5304523671		Pc Board, Led Light		Appelez-nous	-
19	5304523672		Cover, Led Light		Appelez-nous	-
21	5304523674		Hinge Assembly, Door, Lower		Appelez-nous	-
22	5304523675		Foot, Cabinet Level		Appelez-nous	-
10A	4055976973		Fan Motor, Assembly, Air Duct		Appelez-nous	-
14A	5304523668		Switch, Light				$ 19.62
NI	5304515161		Sensor, Thermistor			Immediately	$ 16.99

    View Diagram in Separate Window       Print Part List
