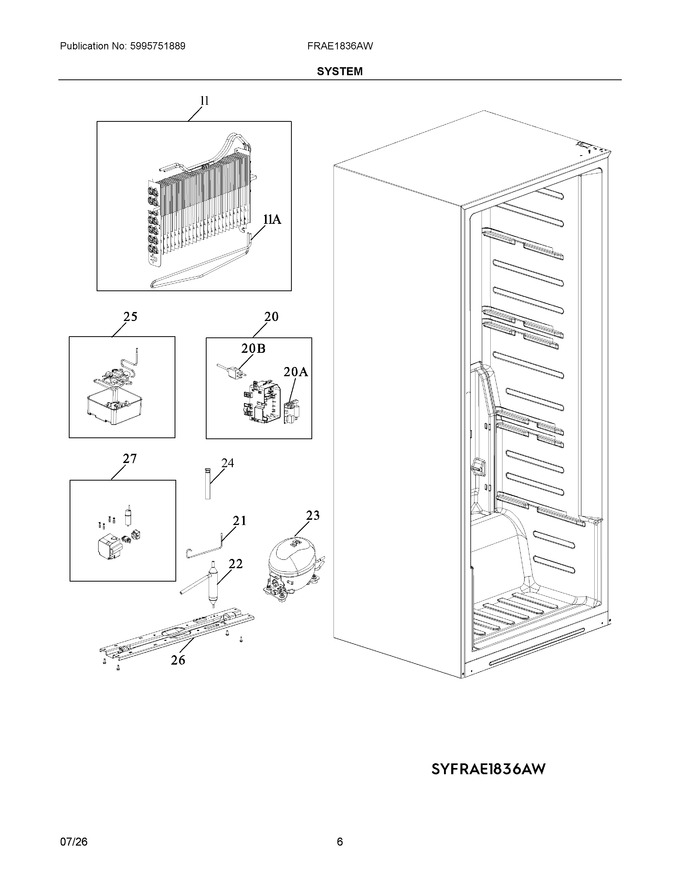

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056050448		Evaporator Assembly, W/defrost Heater		Appelez-nous	-
20	4056050794		Main Electronic Board, Assembly, W/housing, & Power Board		Appelez-nous	-
21	5304536380		Tube Suction Pipe		Appelez-nous	-
22	5304536986		Dryer, Filter			Immediately	$ 25.38
23	4056050752		Compressor Assembly		Appelez-nous	-
24	5304523679		Pipe, Drain		Appelez-nous	-
25	5304536383		Condenser Water Cooler, Drain Pan, Assembly		Appelez-nous	-
26	5304538683		Base Assembly, Mounting Panel, Compressor		Appelez-nous	-
27	4056050810		Compressor Starter, & Overload, Assembly				$ 21.35
11A	5304523666		Heater, Defrost		Appelez-nous	-
20A	4056050802		Main Electronic Board, Pcb		Appelez-nous	-
20B	5304536983		Power Cord		Appelez-nous	-
