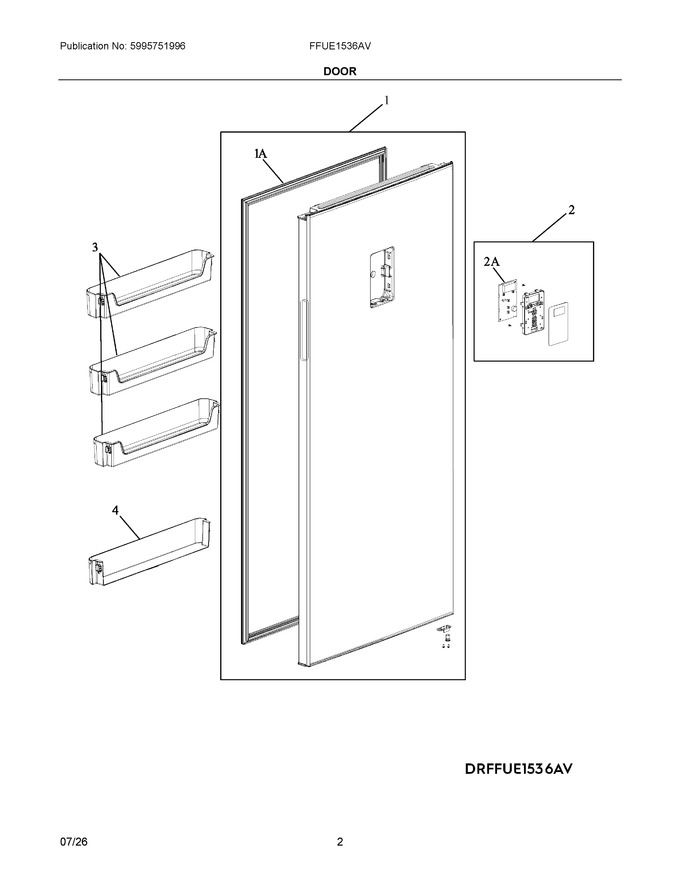

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056050729 | Door Assembly Complete, Freezer, Stainless |
|
- | |||||
| 2 | 4056049887 | Control & Display Board, Assembly |
|
- | |||||
| 3 | 4056050505 | Bin, Door Shelf, Upper |
|
- | |||||
| 4 | 4056050513 | Bin, Door Shelf, Lower |
|
- | |||||
| 1A | 4056050737 | Gasket, Freezer Door |
|
- | |||||
| 2A | 4056049895 | User Interface Board, Control Panel |
|
- |
