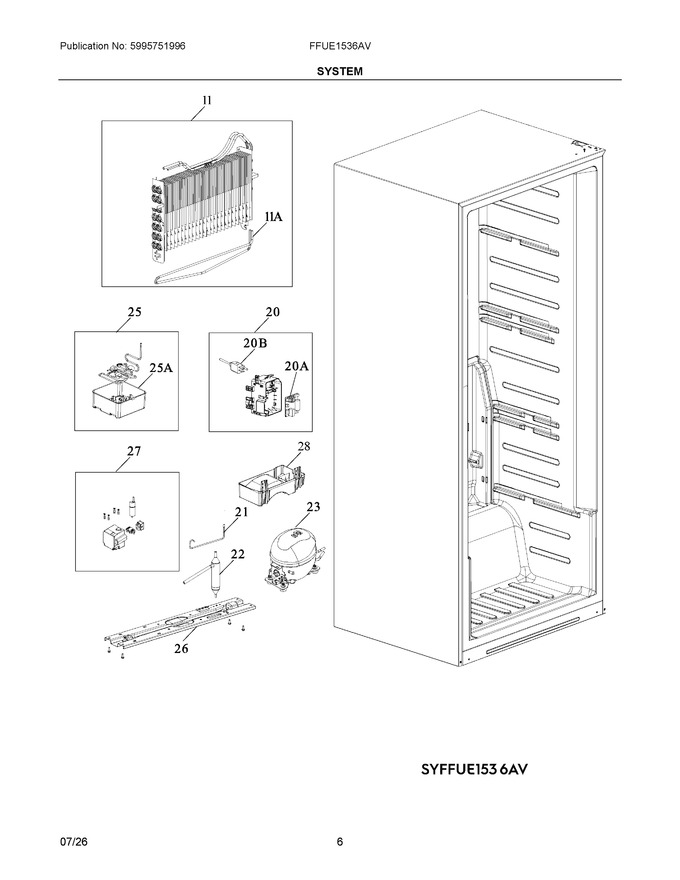

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056050570		Evaporator Assembly, W/defrost Heater		Appelez-nous	-
20	4056050638		Main Electronic Board, W/housing, & Power Cord		Appelez-nous	-
21	4056050653		Tube Suction, Pipe		Appelez-nous	-
22	5304536986		Dryer, Filter			Immediately	$ 25.38
23	4056050679		Compressor Assembly		Appelez-nous	-
25	4056050687		Drain Assembly, W/venting Tube		Appelez-nous	-
26	4056050703		Base Assembly Compressor, Mounting Plate		Appelez-nous	-
27	4056050810		Compressor Starter, & Overload, Assembly				$ 21.35
28	4056050711		Drain Tray		Appelez-nous	-
11A	4056050588		Defrost Heater, 11a#		Appelez-nous	-
20A	4056050646		Main Electronic Board, Pcb		Appelez-nous	-
20B	5304536983		Power Cord		Appelez-nous	-
25A	4056050695		Drain Tray		Appelez-nous	-
