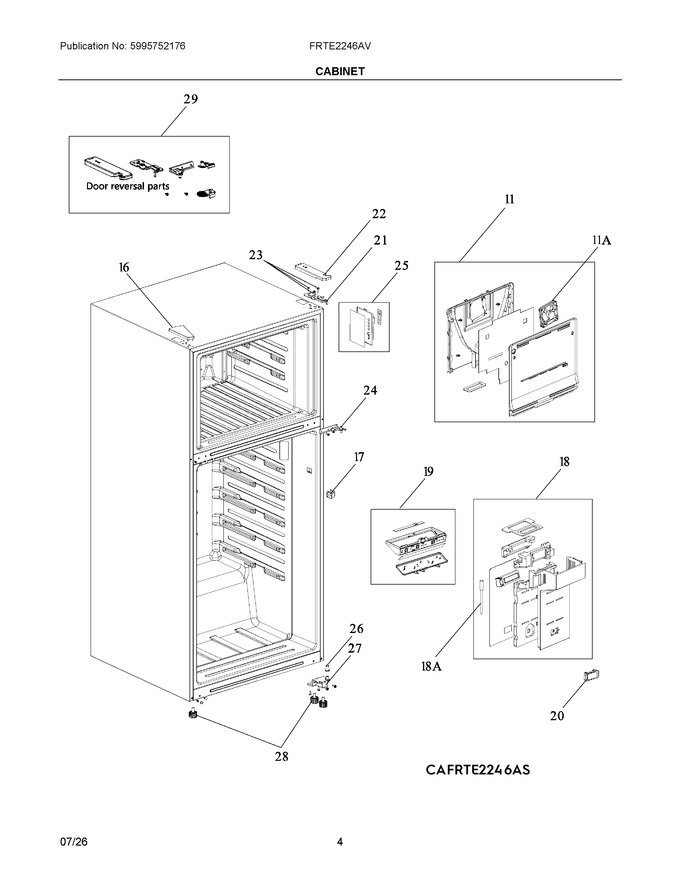

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056045182		Cover Assembly, Air Duct, Freezer		Appelez-nous	-
16	4055973897		Cover Hinge, Upper, Left		Appelez-nous	-
17	5304498687		Switch, Lamp/light				$ 51.03
18	4056045190		Cover Assembly, Refrigerator, Air Duct		Appelez-nous	-
19	5304536961		Lamp Assembly		Appelez-nous	-
20	5304536968		Cover, Airduct		Appelez-nous	-
21	5304523545		Hinge, Door, Right, Upper				$ 35.10
22	4056039755		Cover Hinge, Upper, Right		Appelez-nous	-
23	4056044540		Screw, Upper Hinge, Right		Appelez-nous	-
24	5304523548		Hinge Assembly, Door, Middle			Immediately	$ 41.72
25	4056048319		Control And Display Board, Assembly		Appelez-nous	-
26	4056044557		Sleeve, Hinge Pin, Right Lower		Appelez-nous	-
27	5304523546		Hinge Assembly, Door, Lower				$ 68.69
28	4056044565		Leveling Foot, Adjustable		Appelez-nous	-
29	4056044722		Door Reverse Kit		Appelez-nous	-
11A	5304536957		Fan Motor Assembly				$ 142.92
18A	5304536967		Thermostat, Temperature			Immediately	$ 9.91
