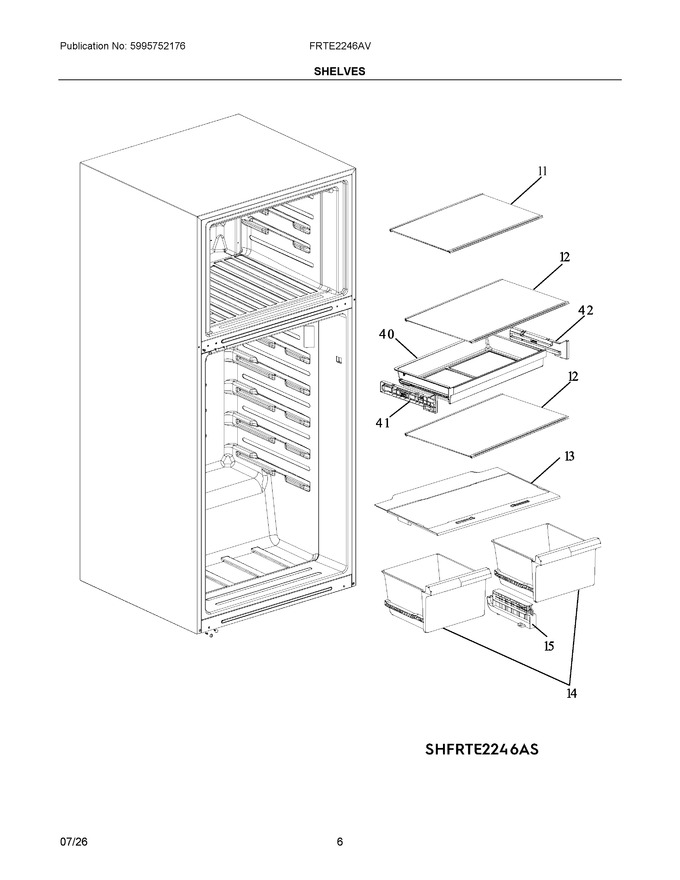

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056045141		Glass Shelf Assembly, Freezer		Appelez-nous	-
12	4056045158		Glass Shelf Assembly, Refrigerator, Upper		Appelez-nous	-
13	4056045166		Glass Shelf Assembly, Lower, Drawer Cover		Appelez-nous	-
14	4056045174		Drawer Assembly, Vegetable Box		Appelez-nous	-
15	4056044615		Guidance Rail, Center, Drawer		Appelez-nous	-
40	4056048327		Deli Drawer, Assembly, Refrigerator				$ 61.96
41	4056045216		Guidance Rail, Assembly, Left		Appelez-nous	-
42	4056045224		Guidance Rail, Assembly, Right		Appelez-nous	-
