SELECT A DIAGRAM

01 - Cover Sheet

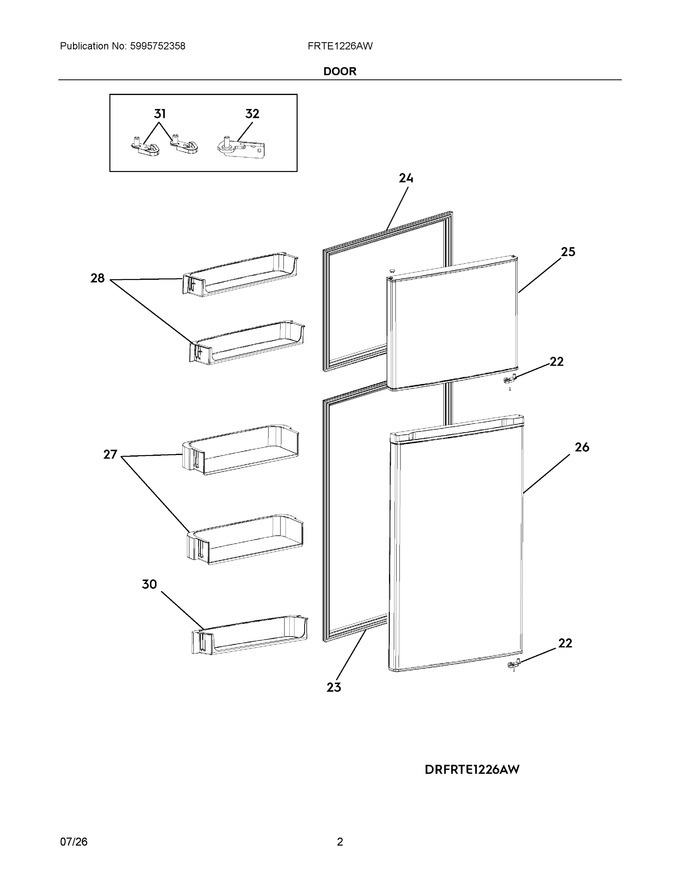

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	5304490968		Closer, Door Stop, W/hinge Pin				$ 31.76
23	5304490971		Gasket, Refrigerator Door, White			Immediately	$ 338.50
24	4056062427		Door Gasket, Freezer		Appelez-nous	-
25	4056062419		Door Assembly Complete, Freezer, White		Appelez-nous	-
26	4056062435		Door Assembly Complete, Refrigerator, White		Appelez-nous	-
27	4056062443		Bin, Door Shelf, Upper, Refrigerator		Appelez-nous	-
28	4056062807		Bin, Door Shelf, Freezer		Appelez-nous	-
30	4056062815		Bin, Door Shelf, Lower, Refrigerator		Appelez-nous	-
31	5304486755		Closer, Door, Left				$ 13.77
32	4056062823		Hinge Lower, Door Reversal, Part		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
