New Model Search:

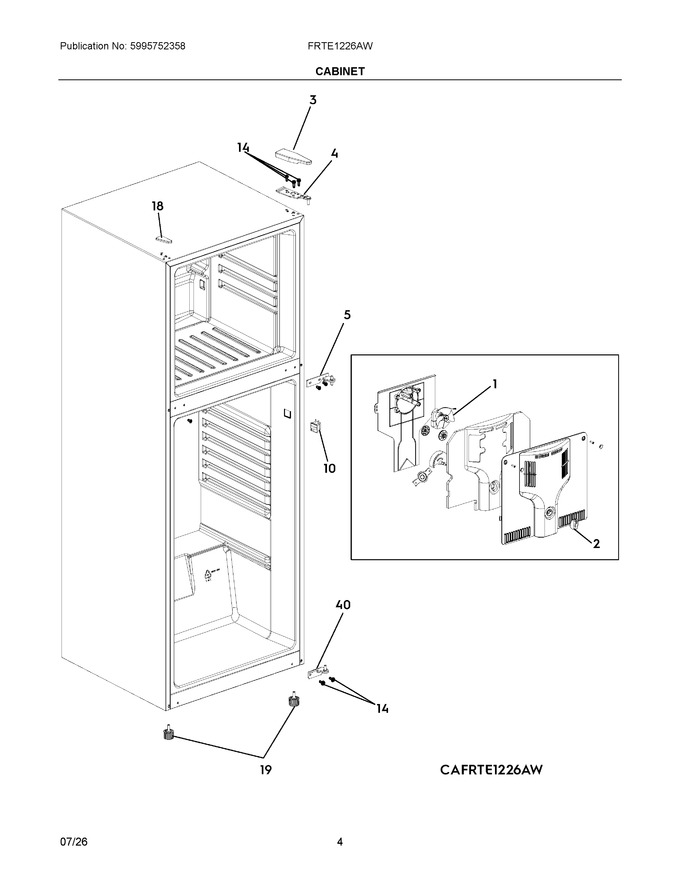

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056062278 | Motor Assembly, Evaporator Fan, Freezer Air Duct |
|
- | |||||
| 2 | 5304490963 | Knob, Damper Control, Freezer |
|
Immediately | $ 49.62 | ||||
| 3 | 5304470306 | Cover, Top Hinge, White |
|
$ 24.36 | |||||
| 4 | 5304470307 | Hinge, Top |
|
$ 44.47 | |||||
| 5 | 5304486754 | Hinge, Middle |
|
$ 54.86 | |||||
| 10 | 4056062377 | Switch Door |
|
- | |||||
| 14 | 5304480019 | Screw, Tapping-locking |
|
$ 7.83 | |||||
| 18 | 5304470308 | Cover, Hinge Holes, White, Top |
|
$ 16.22 | |||||
| 19 | 5304490980 | Leveling Foot, Adjustable |
|
$ 38.51 | |||||
| 40 | 5304490979 | Hinge, Bottom |
|
$ 19.16 |
