01 - Power Lock
02 - Backguard
03 - Main Top
04 - Optional Griddle
05 - Body Section
06 - Oven Door
SELECT A DIAGRAM
New Model Search:

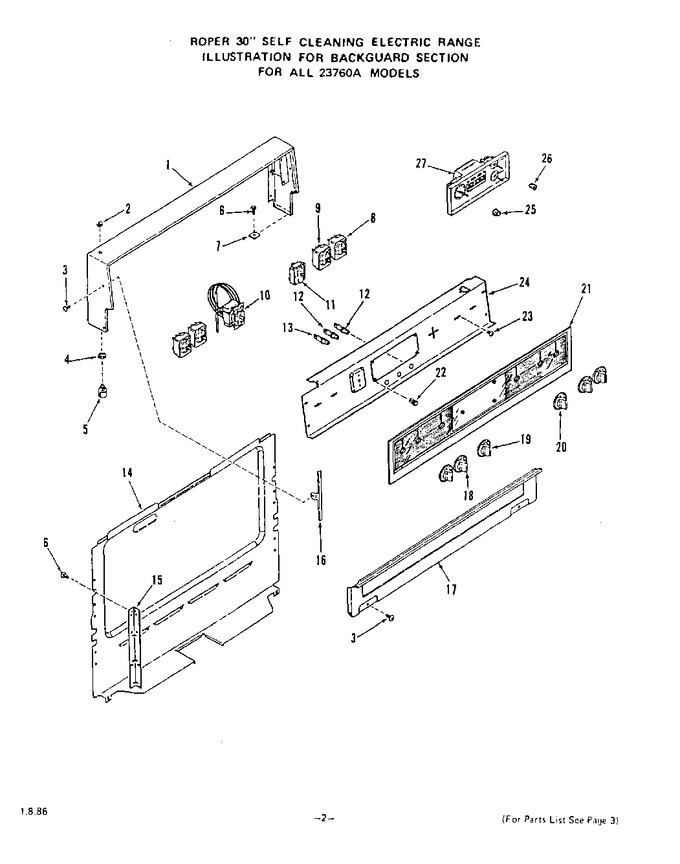

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 333245 | Frame-backguard |
|
- | |||||
| 2 | 87403 | Nut-knurled |
|
- | |||||
| 3 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 4 | 236129 | Nut-hex |
|
- | |||||
| 5 | 298793 | Switch-oven Light |
|
- | |||||
| 6 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 7 | 323523 | Plate |
|
- | |||||
| 8 | 324609 | Switch-infinite Lt. Rear & Rt. Front |
|
- | |||||
| 9 | 324608 | Switch-infinite Lt. Front & Rt. Rear |
|
- | |||||
| 10 | 329907 | Thermostat-oven |
|
- | |||||
| 11 | 329905 | Selector Switch |
|
- | |||||
| 12 | 296317 | Light-indicator (surface/clean) |
|
- | |||||
| 13 | 329931 | Light-indicator (oven) |
|
- | |||||
| 14 | 326085 | Cover-backguard Wire |
|
- | |||||
| 15 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 16 | 299705 | Trim-glass End |
|
- | |||||
| 17 | 296585 | Front-backguard Bottom |
|
- | |||||
| 18 | 325472 | Knob-infinite (4 Req) |
|
- | |||||
| 19 | 329933 | Knob-thermostat |
|
- | |||||
| 20 | 329935 | Knob-selector |
|
- | |||||
| 21 | 333080 | Glass-backguard |
|
- | |||||
| 22 | 293577 | Clip-tubular (4 Req) |
|
- | |||||
| 23 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 24 | 333079 | Panel-control Mounting |
|
- | |||||
| 25 | 294810 | Knob-clock (minute Minder) |
|
- | |||||
| 26 | 109225 | Knob-clock (start & Stop Time) |
|
- | |||||
| 27 | 330938 | Clock W/1 Hr. Timer |
|
- |
