01 - Power Lock
02 - Backguard

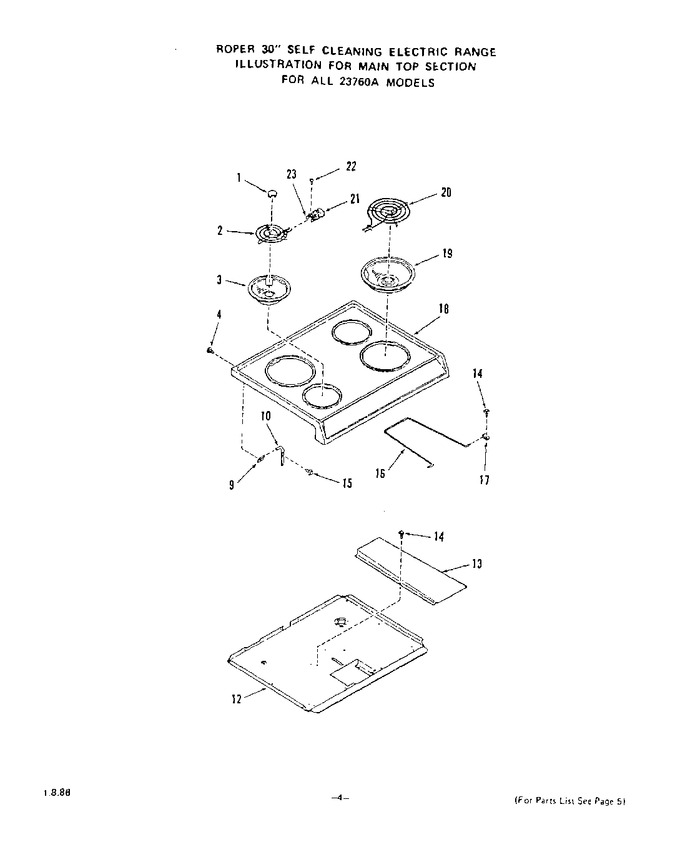

03 - Main Top
04 - Optional Griddle
05 - Body Section
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion (4 Req) |
|
- | |||||
| 2 | PS15-4BK | 6`` Surface Unit (lt. Front & Rt. Rear) (Replaces: 325510) |
|
Immediately | $ 39.95 | ||||
| 3 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 13.80 | ||||
| 4 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 9 | 320931 | Bracket-main Top Hinge (2 Req) |
|
- | |||||
| 10 | 320922 | Hinge-main Top (left) |
|
- | |||||
| 10 | 320921 | Hinge-main Top (right) |
|
- | |||||
| 12 | 331589 | Bottom-burner Box |
|
- | |||||
| 13 | 308830 | Cover-lock Rod |
|
- | |||||
| 14 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 15 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 16 | 320725 | Support Rod-main Top |
|
- | |||||
| 17 | 285945 | Clip |
|
- | |||||
| 18 | 326530 | Main Top (white) |
|
- | |||||
| 18 | 327356 | Main Top (chrome) |
|
- | |||||
| 18 | 326531 | Main Top (almond) |
|
- | |||||
| 18 | 326534 | Main Top (golden Wheat) |
|
- | |||||
| 19 | WPW10196405 | 8`` Chrome Bowl (rt. Front & Lt. Rear) (Replaces: 304969) |
|
Immediately | $ 17.29 | ||||
| 20 | PS26-4BK | 8`` Surface Unit (rt. Front & Lt. Rear) (Replaces: 325506) |
|
Immediately | $ 44.95 | ||||
| 21 | 330031 | Terminal Block W/wire Lead (4 Req) (Replaces: 318960) |
|
Immediately | $ 19.92 | ||||
| 22 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 23 | 318872 | Bracket-terminal Block (4 Req) |
|
- |
