Cooktop Parts
Interior Parts
Optional Parts (not Included)
New Model Search:

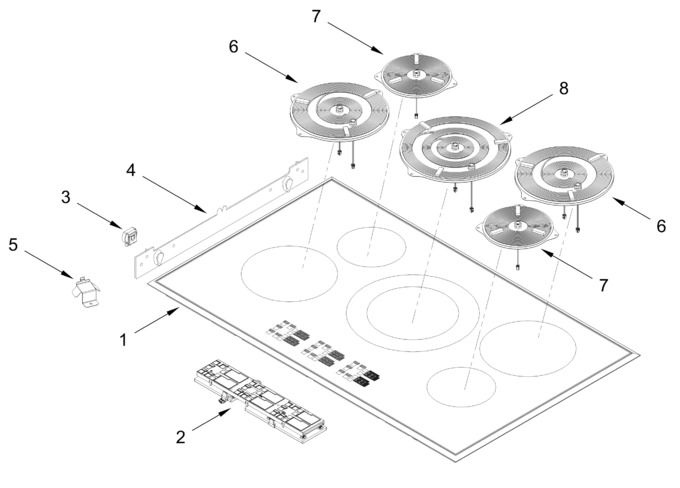

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11589814 | Glass Cooktop Assembly (includes Stainless Trim) (Replaces: W11267526) |
|
Immediately | $ 1,355.27 | ||||
| 2 | W11727259 | User Interface Assembly (Replaces: W11669432) |
|
$ 405.27 | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11586461 | Element (8 Inch) (Replaces: W11429952) |
|
Immediately | $ 225.06 | ||||
| 7 | W11560534 | Element (6 Inch) (Replaces: W11429950) |
|
Immediately | $ 198.51 | ||||
| 8 | W11586463 | Element (9.5 Inch) (Replaces: W11429957) |
|
$ 278.28 | |||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI30D3E2504B7EBDC3CDBC822EF8458E24 | (left Rear And Right Front) |
|
- | ||||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front, Right Rear) |
|
- |
