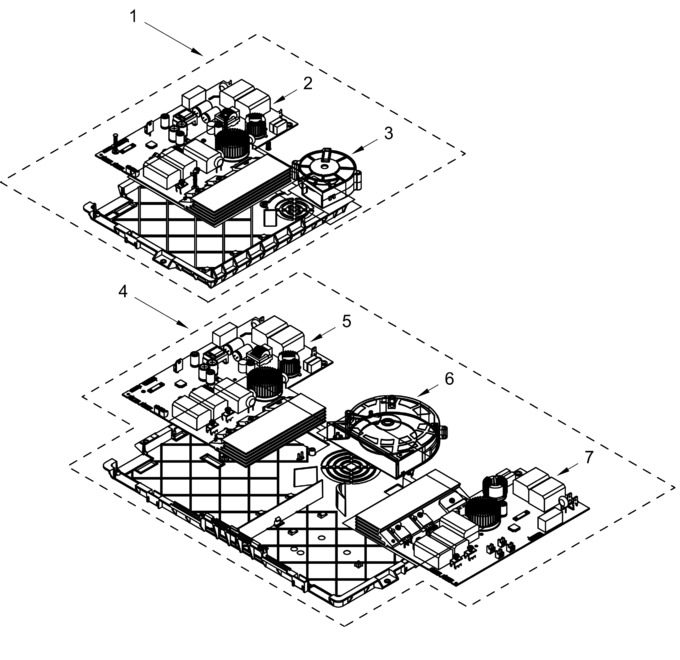

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11838714 | I100 Induction Domino Module Assembly (Replaces: W11788464) |
|
- | |||||
| 2 | ARICCA2A18717CE8FBB3D235FD86CE63128 | Power Board Ascari (not Serviced) |
|
- | |||||
| 3 | W11251205 | Blower Assembly (domino) |
|
Immediately | $ 182.86 | ||||
| 4 | W11838713 | I100 Ipc Induction Module Assembly (Replaces: W11788462) |
|
Immediately | $ 706.62 | ||||
| 5 | ARICCA2A18717CE8FBB3D235FD86CE63128 | Power Board Ascari (not Serviced) |
|
- | |||||
| 6 | W11246545 | Blower Assembly |
|
Immediately | $ 310.94 | ||||
| 7 | ARID9BAC193F4EBAD45F26BF3106628DB58 | Power Board Farina (not Serviced) |
|
- | |||||
| W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 59.90 | |||||
| W11789140 | Cord, Power (includes Terminal Block/nuts And Capacitor) (Replaces: W11330269) |
|
- | ||||||
| W11249832 | Communication Harness (ipc2 To Ipc3) |
|
Immediately | $ 36.48 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 52.94 |
