SELECT A DIAGRAM

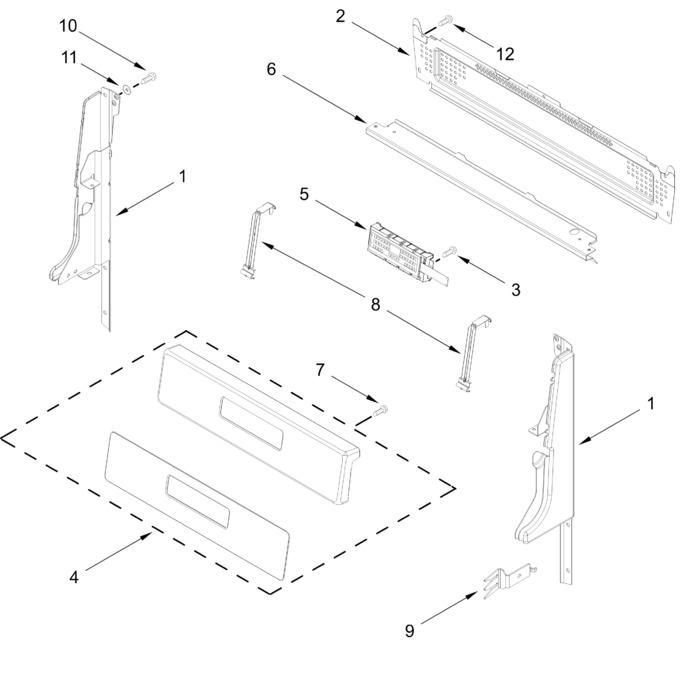

Backguard Parts


Broiler Parts


Chassis Parts


Cooktop Parts


Door Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11841823		Endcap (black, Left )   (Replaces: W11823210)		Appelez-nous	-
2	W10588614		Backguard, Rear   (Replaces: W10535808)		Appelez-nous	-
3	W10850756		Screw, Ground   (Replaces: 8534079)				$ 8.20
4	W11620706		Console, Assembly (stainless With Overlay)   (Replaces: W11488008)		Appelez-nous	-
5	W11841820		Control, Electronic (black)   (Replaces: W11808646)		Appelez-nous	-
6	W10535746		Bracket, Console Mount		Appelez-nous	-
7	WP98008545		Screw (black)   (Replaces: 98008545)				$ 18.60
8	W11620514		Bracket, Control   (Replaces: W11462420)		Appelez-nous	-
9	W10535815		Bracket, Rear		Appelez-nous	-
10	W10837731		Screw   (Replaces: W10493726)				$ 8.30
11	E12916		Washer		Appelez-nous	-
12	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
	W11841822		Endcap (black, Right)   (Replaces: W11823209)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
