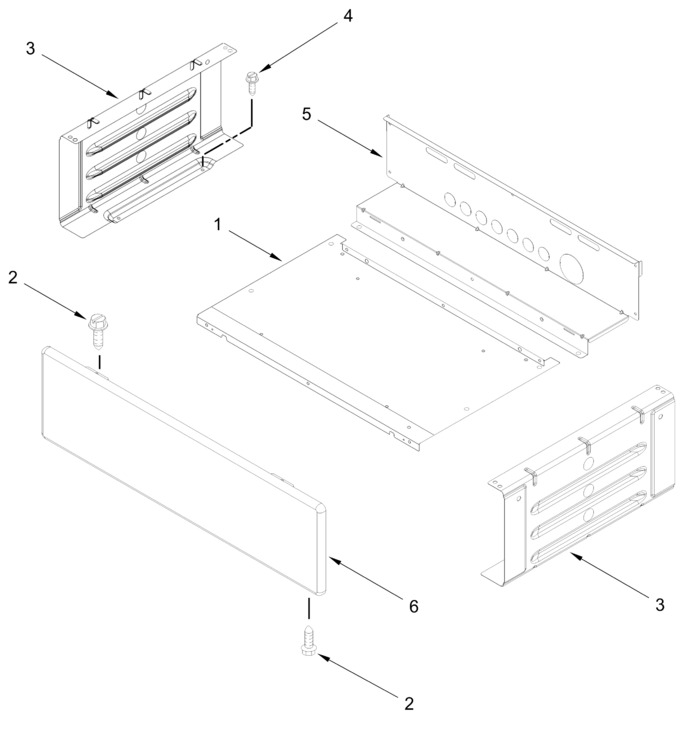

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11841809 | Baffle, Base (Replaces: W11831306) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 14.72 | ||||
| 3 | W11841244 | Panel, Side (Replaces: W10605426) |
|
- | |||||
| 4 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 8.18 | ||||
| 5 | W10682676 | Back Cover, Broiler |
|
- | |||||
| 6 | W11844179 | Broiler Door, Panel (stainless) (Replaces: W11167996) |
|
- |
