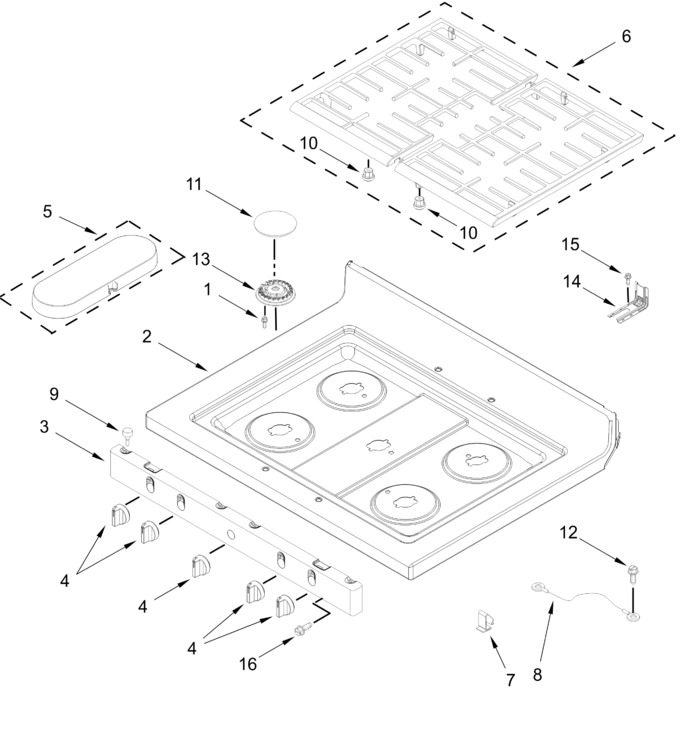

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
2	W11620479		Cooktop (black)   (Replaces: W11443179)		Appelez-nous	-
3	W11844146		Panel, Manifold (black)   (Replaces: W11822719)		Appelez-nous	-
4	W11620491		Knob (black)   (Replaces: W11488096)		Appelez-nous	-
5	W11475513		Oval Spreader Flame, Assembly   (Replaces: W11357363)				$ 98.83
6	W11810546		Grate Set (black)		Appelez-nous	-
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 11.20
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 78.23
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W10919249		Bumper, Grate   (Replaces: W10465081)			Immediately	$ 11.86
11	W11590055		Cap, Burner (black)   (Replaces: W11448875)		Appelez-nous	-
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 7.38
13	W11435630		Spreader, Flame   (Replaces: W11352018)			Immediately	$ 73.91
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 16.16
15	7101P48560		Screw, Anti-tip		Appelez-nous	-
16	W10837731		Screw   (Replaces: W10493726)				$ 7.47
	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
	98015022		Bushing, Snap		Appelez-nous	-
	W11435657		Spreader, Flame   (Replaces: W11352021)				$ 75.99
	W11841818		Main Harness   (Replaces: W11809274)		Appelez-nous	-
	W11620511		Insulation, Manifold   (Replaces: W11492747)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	98005896		Clip, Wire		Appelez-nous	-
	ARI331AC8E6A0B32951011383800D6FC3B6		(left Front, Right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11590057		Cap, Burner (black)   (Replaces: W11453728)		Appelez-nous	-
	W11590056		Cap, Burner (black)   (Replaces: W11448464)		Appelez-nous	-
	W11435659		Spreader, Flame   (Replaces: W11352020)				$ 76.37

    View Diagram in Separate Window       Print Part List
