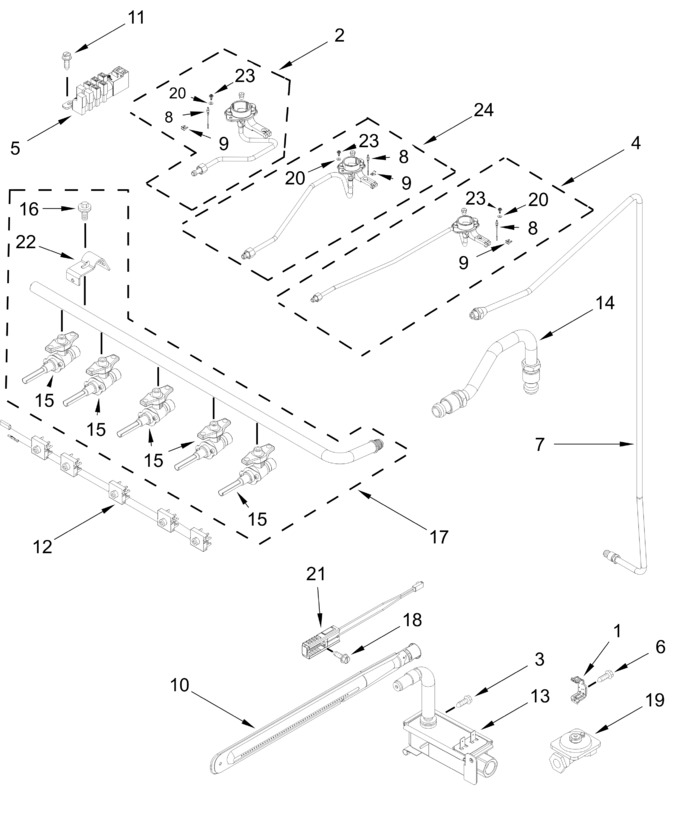

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98007410 | Bracket, Regulator |
|
- | |||||
| 2 | W11590058 | Tubing, Assembly (Replaces: W11459683) |
|
- | |||||
| 3 | 98013634 | Screw |
|
- | |||||
| 4 | W11590060 | Tubing, Assembly (Replaces: W11459685) |
|
- | |||||
| 5 | W11565127 | Spark Module (Replaces: W11281168) |
|
$ 209.43 | |||||
| 6 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.57 | |||||
| 7 | W11628651 | Tube 3/8 In. (manifold To Regulator) (Replaces: W10619922) |
|
- | |||||
| 8 | W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 43.57 | |||||
| 9 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 10 | W11220387 | Burner, Oven (Replaces: W10650358) |
|
$ 178.72 | |||||
| 11 | W10837731 | Screw (Replaces: W10493726) |
|
$ 7.47 | |||||
| 12 | W11620480 | Harness, Switch (Replaces: W11542590) |
|
- | |||||
| 13 | W11590251 | Valve, Oven (Replaces: W11449991) |
|
Immediately | $ 103.03 | ||||
| 14 | W11684515 | Tubing (regulator To Oven Valve) (Replaces: W10512963) |
|
- | |||||
| 15 | W11620420 | Valve, Saddle (Replaces: W11509768) |
|
- | |||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W11509588 | Manifold, Assembly |
|
- | |||||
| 18 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 19 | W11590292 | Regulator (Replaces: W11466755) |
|
- | |||||
| 20 | W11629191 | Washer |
|
- | |||||
| 21 | W11590294 | Igniter, Hot Surface (Replaces: W11506321) |
|
- | |||||
| 22 | W11615438 | Bracket, Valve |
|
- | |||||
| 23 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 24 | W11495381 | Tubing, Assembly |
|
- | |||||
| W11844145 | Kit, Lp Conversion (Replaces: W11836050) |
|
- | ||||||
| W11688146 | Electrode (Replaces: W10876260) |
|
$ 26.90 | ||||||
| W11620424 | Valve, Saddle (Replaces: W11509766) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11590248 | Tubing, Assembly (Replaces: W11459684) |
|
- | ||||||
| W11590059 | Tubing, Assembly (Replaces: W11459686) |
|
- | ||||||
| ARIAE6B47F2172BA87C41E75F25ADA132AB | (left Front, Right Front, Left Rear, Right Rear And Center) |
|
- | ||||||
| ARIE2F766571ECE19AAAC256E04B35496EC | (left Front, Right Front, Center) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11620109 | Valve, Saddle (Replaces: W11509767) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- |
