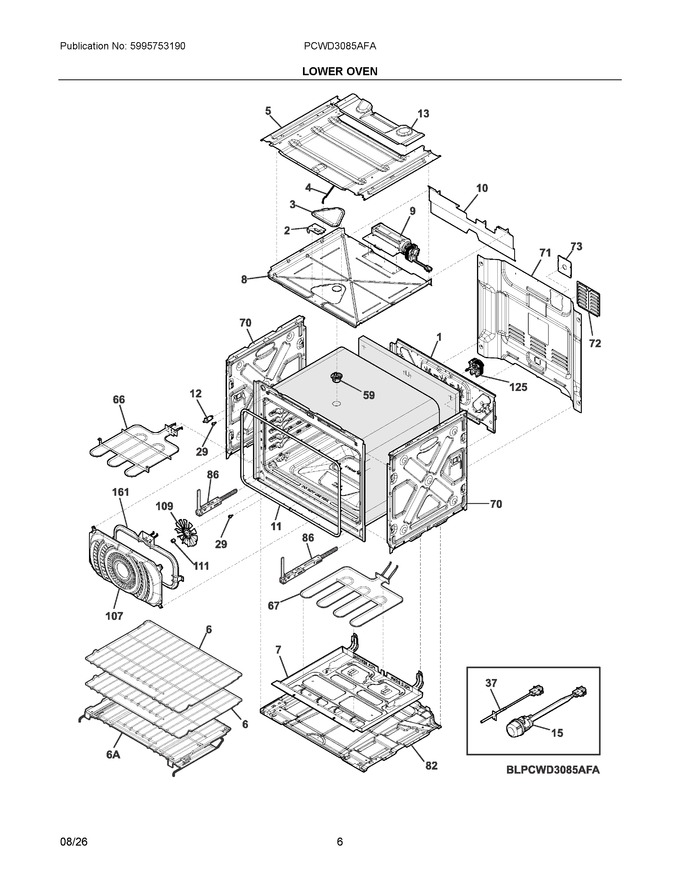

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140152666099		Mounting Panel, Base		Appelez-nous	-
2	5304526367		Latch, Door				$ 16.85
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 11.80
5	5304526313		Panel, Carrier Mid, Lower Dwo, Cooling		Appelez-nous	-
6	5304536326		Rack, Oven, W/handle			Immediately	$ 53.62
7	5304528326		Tray, Hidden Bake				$ 58.14
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
9	140175789035		Blower Assembly, Lower				$ 116.29
10	140287699015		Shield, Insulation, Lower Oven		Appelez-nous	-
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 160.10
12	318394805		Switch, Light, Door				$ 8.96
13	5304526495		Shield, Baffle, Lower Dwo, Cooling		Appelez-nous	-
15	140072023223		Lamp, Halogen, 40w				$ 15.23
29	316517600		Bumper, Front, Main				$ 13.39
37	5304526310		Probe, Oven Sensor			Immediately	$ 47.97
54	140233289069		Receptacle, Meat Probe		Appelez-nous	-
59	140169214032		Tube, Vent Catalyst				$ 14.15
66	140156193199		Element, Broil, 4000w		Appelez-nous	-
67	140156196192		Element, Hidden Bake, 2500w		Appelez-nous	-
70	140144451022		Panel, Side, Exterior		Appelez-nous	-
71	5304526330		Shield, Rear Wire, Lower Dwo				$ 73.42
72	5304526588		Cover, Convection Mtr				$ 18.90
73	5304526551		Cover, Anti Vibration		Appelez-nous	-
82	5304536537		Plate-ext Bottom Sc Wo Raw				$ 37.57
86	5304530348		Hinge, Door, Purple			Immediately	$ 136.95
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 16.01
111	561231207		Nut, Fan Blade			Immediately	$ 20.39
125	5304526375		Motor, Convection Fan				$ 182.00
161	140195758051		Element, Convection, 3800w		Appelez-nous	-
6A	5304530447		Rack Assembly, Glide			Immediately	$ 221.67
86A	5304530349		Hinge, Door, Purple, 2 Spring				$ 70.22
NI	387856311		Screw, 4.2 X 10				$ 3.37
NI	5304530450		Anti Tip, Kit				$ 41.96
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 24.94
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 21.68
NI	5304530449		Harness, Wiring, Lower Oven, Door Switch			Immediately	$ 51.51
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 4.08
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	5304526527		Harness, Wiring, Ovc Board, Lower Oven, To Main Wiring		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526516		Harness, Wiring, Main				$ 208.02
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 46.57
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 171.61
NI	140289409017		Harness, Wiring, Jumper		Appelez-nous	-
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 123.25
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NIA	5304533896		Bracket, Oven Probe		Appelez-nous	-
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
