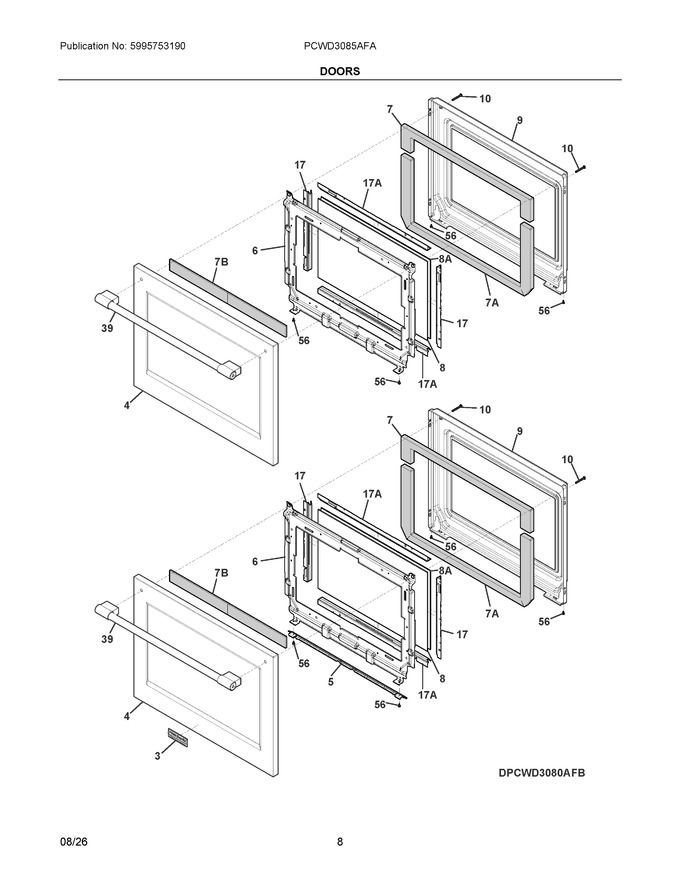

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	140300321019		Badge, Frigidaire Pro		Appelez-nous	-
4	5304532097		Door Assembly, Outer, Steel/glass, Stainless				$ 232.14
5	5304530443		Bracket, Door Protection, Lower				$ 36.24
6	5304526282		Shield, Wool, Door				$ 77.52
7	140293846014		Insulation, Door, Top		Appelez-nous	-
8	5304526387		Glass, Door, Shr, Inner, 2 Side Coating			Immediately	$ 184.54
9	5304530464		Liner, Oven Door, Midnight Black			Immediately	$ 90.78
10	316433307		Screw, Wh Sims T, 10-14 X 68.34, Handle Mtg.			Immediately	$ 4.78
17	5304526284		Bracket, Glass Pack, Vertical			Immediately	$ 13.48
39	140306724018		Handle, Door, Stainless		Appelez-nous	-
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
17A	5304526285		Bracket, Glass Pack, Horizontal				$ 10.11
7A	140293846022		Insulation, Door (2)			Immediately	$ 7.94
7B	5304526530		Insulation, Foil, Door				$ 16.85
8A	140163079100		Glass, Door, Inner				$ 69.02
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
