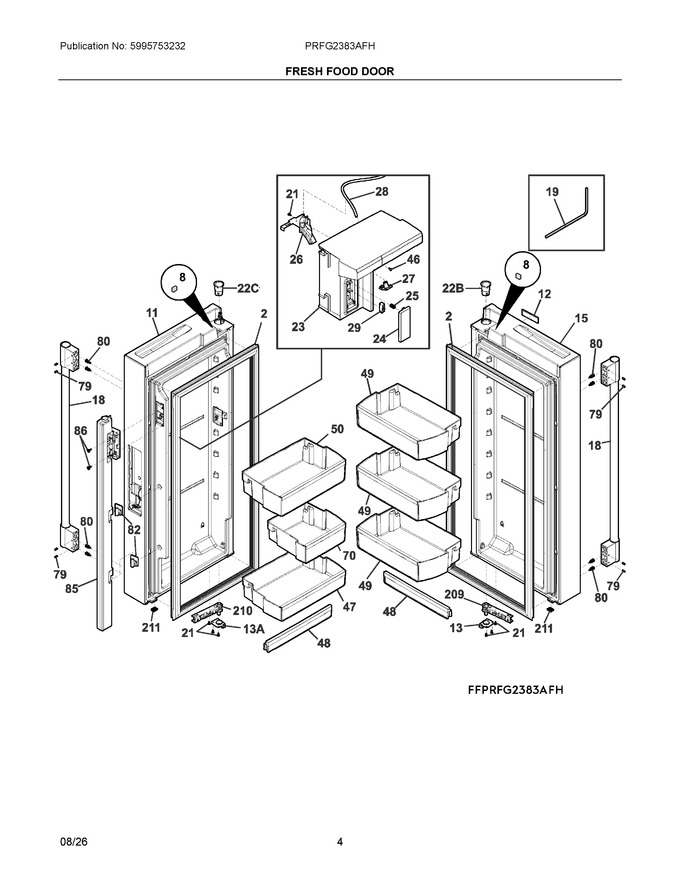

03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-door, Magnetic, 36", Ff |
|
Immediately | $ 99.87 | ||||
| 8 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.57 | |||||
| 11 | 5304537108 | Door Assembly Complete, Refrigerator, Lh, Stainless |
|
$ 369.55 | |||||
| 12 | 809108704 | Badge, Frigidaire Pro |
|
Immediately | $ 49.10 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 25.34 | |||||
| 15 | 5304537107 | Door Assembly Complete, Refrigerator, Rh, Stainless |
|
Immediately | $ 368.74 | ||||
| 18 | 5304536933 | S/a Pur-handle Horizontal Pro (Replaces: 5304535091) |
|
Immediately | $ 133.30 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 23 | 5304530964 | Housing, Water Dispenser |
|
Immediately | $ 108.48 | ||||
| 24 | 5304530870 | Button, Water Dispenser, White |
|
$ 45.78 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.79 | ||||
| 26 | 5304531239 | Retainer, Water Tube |
|
Immediately | $ 15.34 | ||||
| 27 | 5304530965 | Nozzle, Water Dispenser |
|
Immediately | $ 196.08 | ||||
| 28 | 8582189764607 | Hose Water, Internal, Dispenser |
|
- | |||||
| 29 | 241870104 | Switch, Disp Paddle |
|
Immediately | $ 22.59 | ||||
| 46 | 240383413 | Screw, 19.1mm, White |
|
$ 6.74 | |||||
| 47 | 5304537222 | Door Bin, Standard, Lf Door |
|
Immediately | $ 63.62 | ||||
| 48 | 5304539201 | Door Bin, Lower, Strap |
|
Immediately | $ 17.43 | ||||
| 49 | 5304536414 | Door Bin, Standard, Rh |
|
Immediately | $ 60.86 | ||||
| 50 | 5304537166 | Door Bin, Full Shelf, Lh Door |
|
- | |||||
| 70 | 5304537167 | Door Bin, Non-disp, Dairy Bin |
|
- | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 5304537280 | Screw, Mount, Handle |
|
- | |||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 85 | 5304530853 | Mullion Assembly, Flipper, Gray, 85 #, W/heater |
|
Immediately | $ 124.68 | ||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washer |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washer |
|
Immediately | $ 109.27 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 13.48 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 25.28 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 21.26 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 21.26 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 5304508776 | Lock Washer, External Tooth |
|
$ 4.83 | |||||
| NIA | 5304531012 | Harness, Wiring, Water Dispenser |
|
Immediately | $ 44.77 | ||||
| NIB | 5304537169 | Harness Wiring, Door |
|
- |
