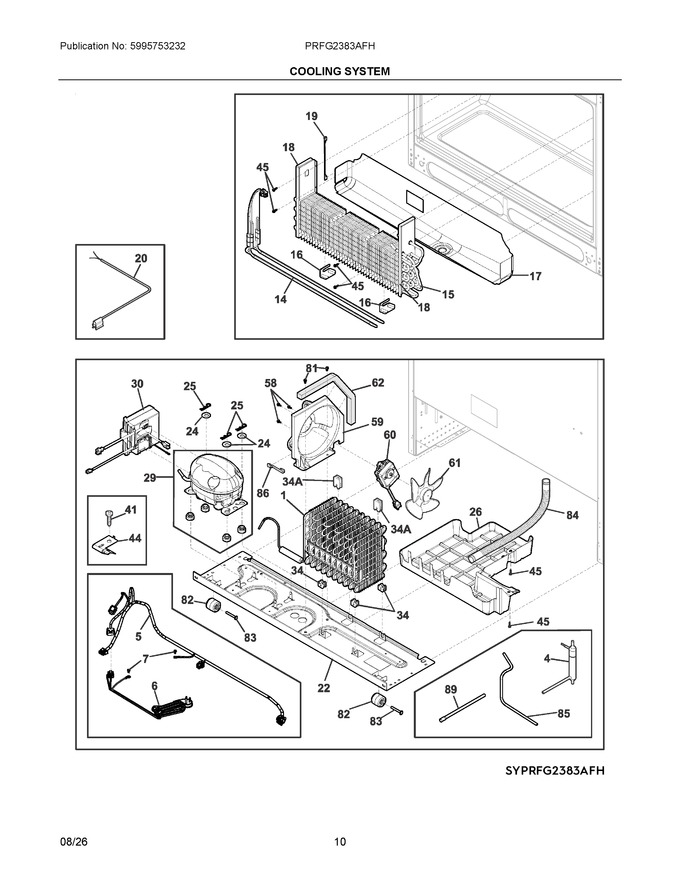

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241862904		Condenser, Assembly, W/grommets-clip			Immediately	$ 210.66
4	5303305677		Dryer-filter   (Replaces: 242047604)			Immediately	$ 35.19
5	140287527059		Harness, Wiring, Machine Compt.		Appelez-nous	-
6	241516904		Cord, Service			Immediately	$ 42.98
7	218709101		Screw, Hex Head, 10-32 X 0.500				$ 7.09
14	5304531011		Heater, Defrost, Evaporator			Immediately	$ 200.36
15	242044505		Evaporator				$ 45.61
16	5304530897		Bracket, Defrost Heater		Appelez-nous	-
17	241791201		Trough-drain				$ 121.28
18	241860131		Gasket, Closed Cell			Immediately	$ 6.16
19	241510904		Harness-dispenser, Grounding				$ 67.73
20	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 94.00
22	5304530908		Base Assembly, Compressor, W/rollers			Immediately	$ 92.18
24	241812301		Washer-compr Mtg				$ 14.32
25	242037702		Clip-spring				$ 9.45
26	241920608		Pan-defrost, 26				$ 156.05
29	5304538931		Compressor Assembly, Vtb1113y			Immediately	$ 267.52
30	140231161278		Inverter, Compressor, Vtb111		Appelez-nous	-
34	241929901		Grommet-cond Mtg				$ 10.24
41	240555002		Screw-#8-32 X 3/8			Immediately	$ 14.96
44	5304454459		Clamp, Cable		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
58	240569202		Screw, 8-18 X .500				$ 2.36
59	241946106		Shroud-cond Fan				$ 50.40
60	5304539496		Motor, Fan, Condenser				$ 62.59
61	8582416395027		Blade, Condenser Fan		Appelez-nous	-
62	240346701		Tape, Foam Seal, Shroud				$ 33.08
81	240359403		Screw-fan Shrouds				$ 4.21
82	240335202		Roller, Compressor Base, Rear				$ 23.63
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin   (Replaces: 5303316859)			Immediately	$ 39.27
84	241830904		Tube-drain			Immediately	$ 25.99
85	5304530251		Tube, Connector, Suction			Immediately	$ 24.50
86	240409302		Spacer-cond Tube, Black				$ 74.99
89	215346903		Tube-process			Immediately	$ 11.74
34A	241929902		Grommet-cond Mtg				$ 10.24
NI	218515401		Clip, Grille/tube, & Hinge				$ 19.69
NI	240555005		Screw, Hex Washer Head, 8-32 X 3/8				$ 12.64
NI	242015001		Screw, 8-18 X 1/2			Immediately	$ 18.11
NI	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
NI	241842301		Cap-thermistor			Immediately	$ 37.80
NI	5304527119		Screw, Drilling, 10-24 X 3/4		Appelez-nous	-
NIA	240346701		Tape, Shroud, Foam Seal, Condenser   (Replaces: 240346721)				$ 33.08
