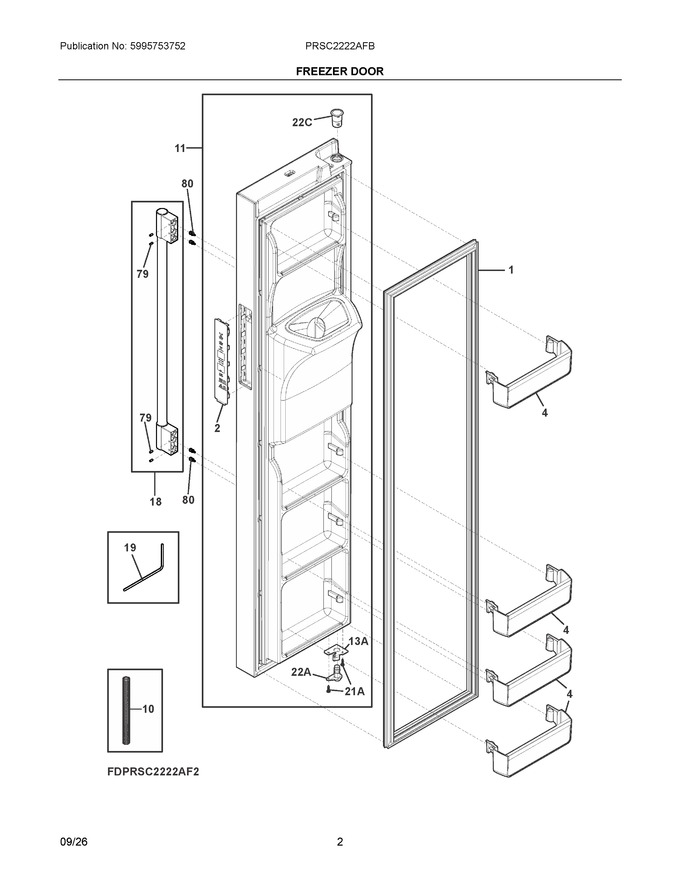

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510208 | Gasket, Magnetic, Door, Freezer |
|
Immediately | $ 105.50 | ||||
| 2 | 5304534372 | User Interface, Assembly, Side Fzr Door |
|
Immediately | $ 151.17 | ||||
| 4 | 5304533275 | Bin Assembly, Pseudo, Frz Door |
|
$ 161.06 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 20.63 | |||||
| 11 | 5304533264 | Door Assembly, Freezer, Stainless, Complete |
|
$ 555.04 | |||||
| 18 | 5304535090 | S/a Pur-handle Verticle Pro |
|
- | |||||
| 19 | 241601002 | Wrench, Allen |
|
- | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 5304527380 | Stop, Door, Black, Freezer |
|
$ 16.85 | |||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 5304532161 | Bushing, Door Closer, Lower, Freezer |
|
$ 4.83 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 21.26 | |||||
| NI | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 |
