PRSC2222AFB | Leon's : Appliance Model Lookup

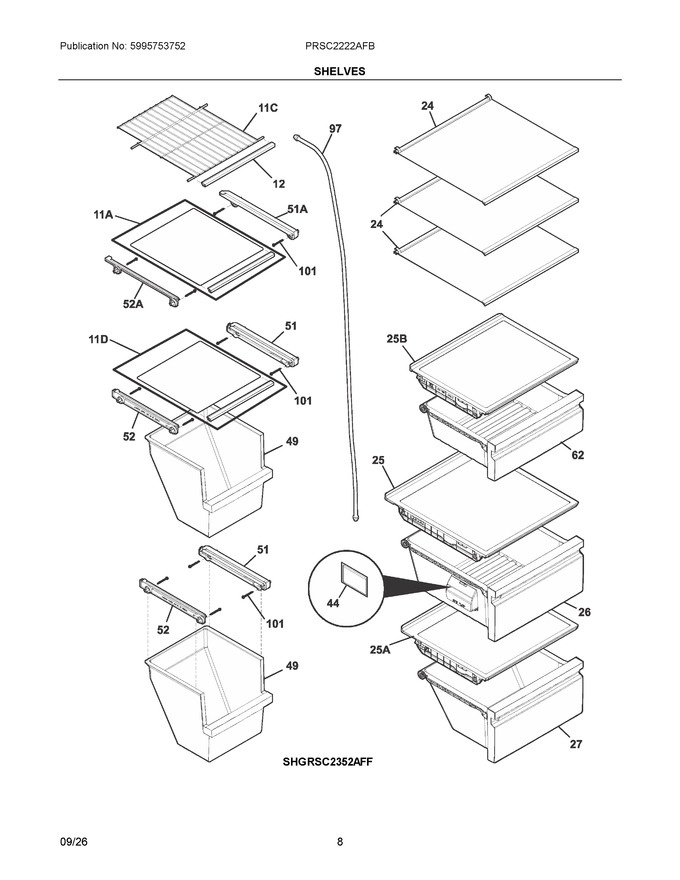

Diagram #	Part Number	Description	Availability	Ships	Price
12	5304527117	Trim, Wire Shelf, Metalic, Freezer, Front	Appelez-nous	-
24	140279024461	Glass Shelf, Assembly, W/trim	Appelez-nous	-
25	140116198163	Crisper Cover, Assembly, Glass, Upper, W/glass-gasket (Replaces: 5304533283)			$ 100.72
26	5304533286	Crisper Pan, Upper Assy, W/rollers, Trim		Immediately	$ 172.76
27	5304533287	Crisper Pan, Lower Assy, W/rollers, Trim		Immediately	$ 173.34
44	FRPAPKRF	Absorber, Ethylene		Immediately	$ 17.33
49	5304533279	Basket, Sliding, Freezer			$ 67.83
51	5304540164	Lower Rail, Freezer Sxs, 23cd, Rh	Appelez-nous	-
52	5304540163	Lower Rail, Freezer Sxs, 23cd, Lh	Appelez-nous	-
62	5304533288	Deli Pan, Assembly, W/rollers-trim		Immediately	$ 177.22
97	242220119	Tube, Water, 97.5", Natural, Ilter, Secondary Valve		Immediately	$ 33.86
101	218493101	Screw, Hex Washer Head, 8-18ab X 1-3/4			$ 14.96
11A	140279024487	Glass Shelf, Assembly, Upper Fz, W/trim	Appelez-nous	-
11C	8588090782034	Wire Shelf, Assembly, Pizza	Appelez-nous	-
11D	140279024479	Glass Shelf, Assembly, Lower Fz, W/trim	Appelez-nous	-
25A	5304533284	Crisper Cover, Assembly, Glass, Lower, W/glass-gasket			$ 87.89
25B	5304533285	Deli Cover, Assembly, Glass, W/glass-gasket			$ 96.01
51A	140287167021	Rail, Upper, Freezer, Rh	Appelez-nous	-
52A	140287168029	Rail, Upper, Freezer, Lh	Appelez-nous	-
NI	241637202	Screw, Hex Sems Head, 8-18ab X 1-3/4			$ 5.90
NI	5304508016	Roller, Crisper Pan		Immediately	$ 10.47
NI	241953902	Screw, Quad Hilo, #8-18 X 0.380		Immediately	$ 19.01
NIA	241806601	Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001)		Immediately	$ 78.40
NIB	242200102	Clip, Tubing, 90 Deg Elbow			$ 11.81
