SELECT A DIAGRAM

Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

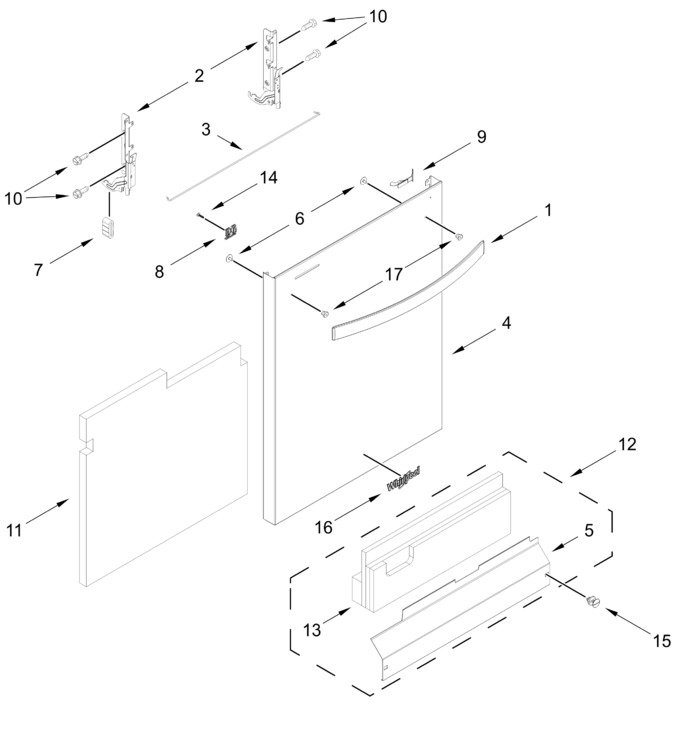

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11685315		Handle (stainless)   (Replaces: W11554913)			Immediately	$ 102.81
2	W11806565		Arm, Hinge (left)   (Replaces: W11687975)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11613485		Panel, Front (stainless, Includes Screw, Barrel Nut, Light Pipe, Badge & Mounting Stud)   (Replaces: W11528196)			Immediately	$ 420.46
5	W11763736		Access Panel (black)   (Replaces: W11674252)			Immediately	$ 42.25
6	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	W10692757		Barrel Nut, Front Panel				$ 16.01
9	W11504190		Light, Pipe		Appelez-nous	-
10	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W10827631		Access Panel & Insulation Assy (black)   (Replaces: W10369023)			Immediately	$ 195.64
13	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
14	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
15	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
16	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
17	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
	W11806608		Arm, Hinge (right)   (Replaces: W11687976)			Immediately	$ 142.24

    View Diagram in Separate Window       Print Part List
