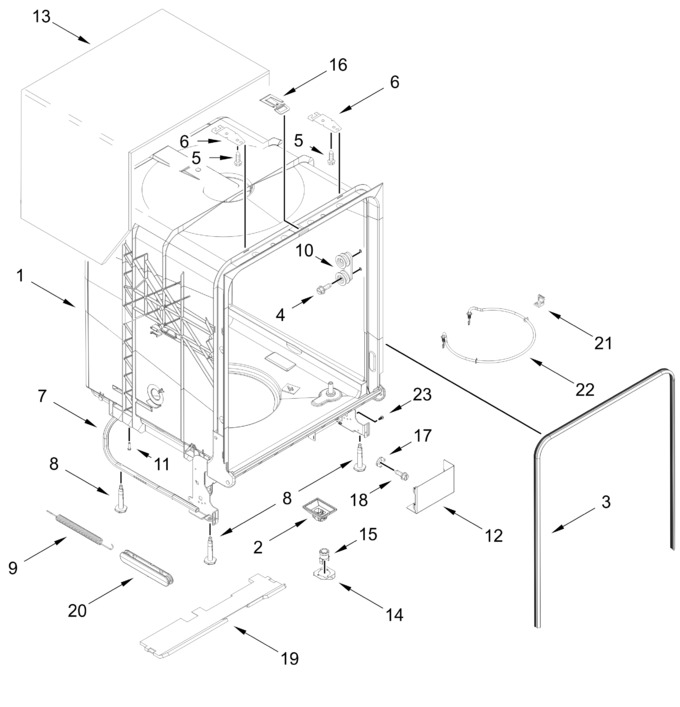

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10909756		Tub Assembly   (Replaces: W10908439)				$ 536.78
2	W11684260		Shield, Thermostat   (Replaces: W11656602)		Appelez-nous	-
3	W11768590		Seal, Tub   (Replaces: W11683628)			Immediately	$ 32.75
5	W11551549		Screw   (Replaces: W11296374)				$ 14.72
7	W11680335		Support, Bottom   (Replaces: W11623675)				$ 87.52
8	8193716		Leveler, Leg   (Replaces: W10619352)			Immediately	$ 88.96
10	W11458872		Wheel Assembly   (Replaces: W10902242)			Immediately	$ 76.86
12	W11779375		Cover, Terminal Box   (Replaces: W11736701)				$ 29.53
13	W10896113		Shield, Tub Sound   (Replaces: W10866979)			Immediately	$ 68.68
14	W11684257		Clip, Thermostat   (Replaces: W11525335)		Appelez-nous	-
16	WPW10544004		Strike, Latch   (Replaces: W10544004)			Immediately	$ 45.69
19	W11747584		Sound Insulation, Bottom   (Replaces: W10819539)			Immediately	$ 28.63
20	W11830258		Bushing, Door Spring   (Replaces: W11776776)		Appelez-nous	-
21	W11027055		Bracket, Heater Support   (Replaces: W10732961)				$ 35.84
