SELECT A DIAGRAM

Diagram for Cabinet And Stirrer Parts
Cabinet And Stirrer Parts

Diagram for Control Panel Parts
Control Panel Parts

Diagram for Internal Microwave Parts
Internal Microwave Parts

Diagram for Internal Oven Parts
Internal Oven Parts

Diagram for Microwave Door Parts
Microwave Door Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11818404 Appliance Manager   (Replaces: W11799765) Appelez-nous -
2 W11607085 . Sensor, Convection   (Replaces: 423107845441) In-Stock Immediately $ 44.42

3 WPW10493735 . Heater, Convection Element   (Replaces: 461967848711) In-Stock Immediately $ 110.49

4 W11512064 Blade, Fan   (Replaces: W11453899) In-Stock Immediately $ 171.35

5 WPW10128850 Sliding Arm Assembly   (Replaces: W10128850) In-Stock Immediately $ 142.08

6 W11758693 Filter, Noise   (Replaces: W11755010) Special Order $ 43.11

7 461967754821 . Duct, Magnetron Special Order $ 87.16

8 W10486208 . Trim, Left Side   (Replaces: 461967017491) Special Order $ 79.14

9 461967825321 . Screw Special Order $ 12.13

10 W11754877 Light Module, Led   (Replaces: W11692431) Special Order $ 95.50

11 461967842541 . Thermoactuator Special Order $ 72.29

12 W11188752 . Fuse   (Replaces: 241908600053) In-Stock Immediately $ 17.37

13 W10245194 Block, Fuse   (Replaces: 4375231) Special Order $ 87.31

14 W11754876 Thermostat, Magnetron   (Replaces: W11692611) In-Stock Immediately $ 111.45

15 W11578959 Magnetron   (Replaces: W11504545) In-Stock Immediately $ 123.62

16 W11754878 Lens Assy, Led   (Replaces: W11692409) Special Order $ 39.95

17 W11754879 Tray, Electronic   (Replaces: W11645761) Appelez-nous -
18 W11754880 Probe, Temperature   (Replaces: W11692542) Special Order $ 54.25

19 W11607070 Arm, Sliding   (Replaces: W11213889) Special Order $ 28.96

20 W11715912 . Spring, Release Rod   (Replaces: 423107570871) In-Stock Immediately $ 8.27

21 W11724411 Nut, Speed   (Replaces: W10120233) In-Stock Immediately $ 60.47

22 461967825601 . Screw Appelez-nous -
23 W11646907 Housing, Upper Inverter   (Replaces: W11591019) Special Order $ 82.38

24 W11646906 Housing, Lower Inverter   (Replaces: W11591018) Appelez-nous -
25 W11334716 Vent, Top Microwave Special Order $ 64.81

26 W11754875 Sensor, Humidity   (Replaces: W11647874) Special Order $ 65.70

27 8205707 . Support, Bottom   (Replaces: 461967008461) In-Stock Immediately $ 68.79

28 W11732689 Hinge, Door   (Replaces: W11681073) Special Order $ 102.84

29 W11534564 Motor, Convection Fan   (Replaces: W11233698) In-Stock Immediately $ 105.70

30 W11344874 Cooling Fan Assembly   (Replaces: W11131760) In-Stock Immediately $ 191.74

31 W11578579 Inverter   (Replaces: W11504539) In-Stock Immediately $ 259.99

32 461967825971 . Screw Appelez-nous -
33 W11807875 . Screw   (Replaces: 461967825341) Appelez-nous -
34 W11690594 . Screw (shoulder)   (Replaces: 461967825781) Special Order $ 14.79

35 WPW10128850 . Bushing   (Replaces: 461967510191) In-Stock Immediately $ 142.08

36 W11700292 . Spring, Torsion   (Replaces: 461967570351) Special Order $ 72.30

37 W11684510 . Support   (Replaces: 461967750494) In-Stock Immediately $ 15.52

W11754863 Harness, Fan And Turntable   (Replaces: W11476496) Appelez-nous -
W11754864 Harness, Inverter   (Replaces: W11476511) Appelez-nous -
W11754865 Harness, Comm And Eol   (Replaces: W11476493) Appelez-nous -
W11754866 Harness, Main Upper Mwo   (Replaces: W11476494) In-Stock Immediately $ 267.48

W11754867 Harness, Main Lower Mwo   (Replaces: W11706181) Special Order $ 146.29

461967017481 Trim, Right Side (not Serviceable) Appelez-nous -
ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 Miscellaneous Parts Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

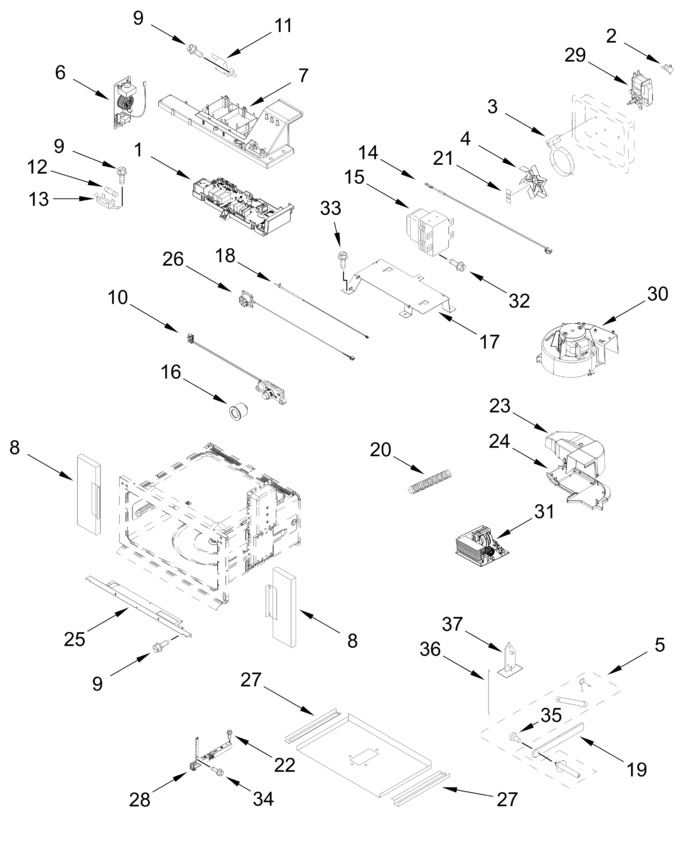

Diagram for KOEC930SBE05
