SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts

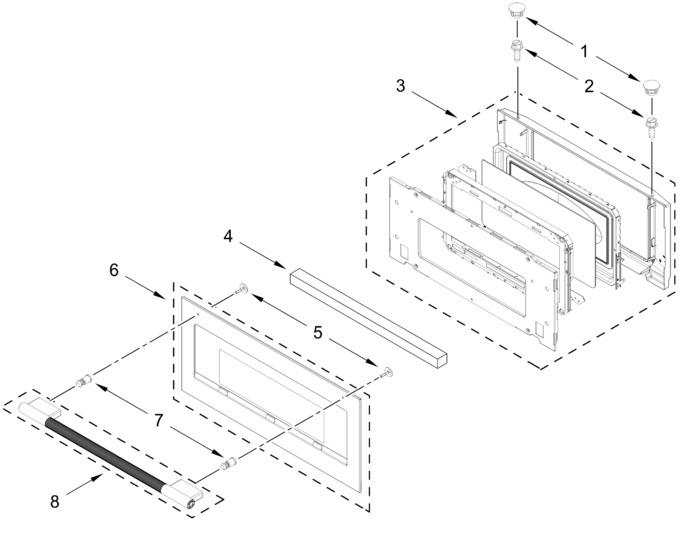

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11603381		Inner Door Assembly		Appelez-nous	-
4	W10359769		Foam, Door Handle				$ 14.76
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
6	W11795857		Mwo Door Assembly (black Ore)   (Replaces: W11728703)			Immediately	$ 1,056.56
7	W11773159		Stud, Handle   (Replaces: W11804271)				$ 29.86
8	W11783624		Handle (black Ore)   (Replaces: W11680263)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
